UltraCMOS® SPDT RF Switch

The PE42525 is a HaRP™ technology-enhanced reflective SPDT RF switch die that supports a wide frequency range from 9 kHz to 60 GHz. This wideband flip-chip switch is pin compatible to the PE42524 and the PE426525. It delivers low insertion loss, fast switching time and high isolation performance, making this device ideal for test and measurement, microwave backhaul, radar and military communications (mil-comm) applications. At 50 GHz, the PE42525 exhibits 1.9 dB insertion loss and 37 dB isolation. No blocking capacitors are required if DC voltage is not present on the RF ports.

PE42525 UltraCMOS® SPDT RF Switch

UltraCMOS® SPDT RF Switch

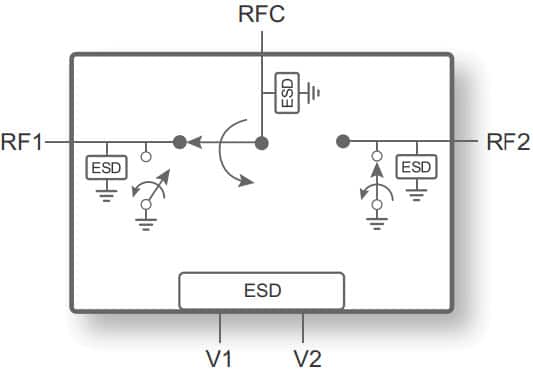

PE42525


The PE42525 is a HaRP™ technology-enhanced reflective SPDT RF switch die that supports a wide frequency range from 9 kHz to 60 GHz. This wideband flip-chip switch is pin compatible to the PE42524 and the PE426525. It delivers low insertion loss, fast switching time and high isolation performance, making this device ideal for test and measurement, microwave backhaul, radar and military communications (mil-comm) applications. At 50 GHz, the PE42525 exhibits 1.9 dB insertion loss and 37 dB isolation. No blocking capacitors are required if DC voltage is not present on the RF ports.

Industry-Leading Product

Specifications

DescriptionSPDT (R)
Min Freq.9 kHz
Max Freq.60 GHz
Max Typ. IL (dB)2.70
Min Typ. IL (dB)0.90
Max Typ. Iso (dB)80
Min Typ. Iso (dB)36
P1dB/P0.1dB (dBm)35.0 / –
IIP3 (dBm)48
Max Power Rating (dBm)29
Max Temp (ºC)105
Switching Time0.008 µs
ESD HBM (V)1000
PackageFlip-chip
Package (mm)

About Product

Key Features

      Wideband support up to 60 GHz
      Low insertion loss
      Fast switching time of 8 ns
      High port to port isolation
      High linearity: IIP3 of 48 dBm
      Flip-chip die, pin-to-pin compatible to the PE42524 and the PE426525
