Digital Tunable Capacitors (DTCs)

Key Features

  • Small form factor with high Q
  • Monolithically integrated impedance tuning solution
  • Wide-band tuning coverage, minimum mismatch losses, high linearity and fast switching speed
  • Best-in-class ESD and reliability

RF Product Catalog

View the pSemi 2022-2023 RF product
catalog to see our complete RF
product portfolio.

Download Here
Product Store Datasheet Description Freq. Peak RF Voltage (Vpk) Typ. Shunt Capacitance (pF) Tuning Ratio Typ. Quality Factor @ Cmin Interface Package Package (mm) VDD Range (V) ESD HBM (V)
Min Max Min Max Min Max

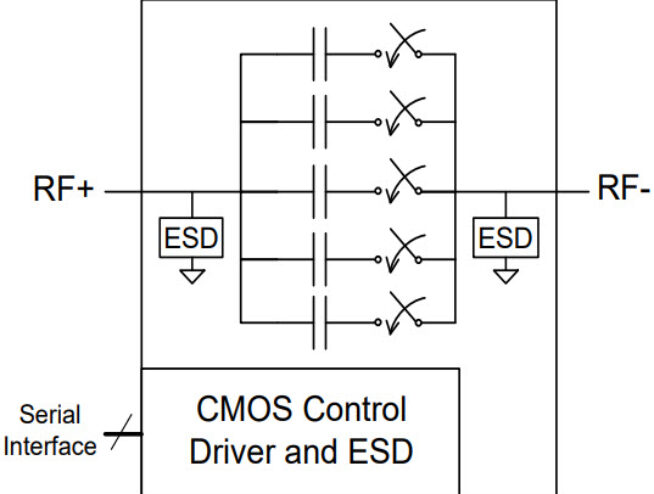

PE64102 5-bit; 32 states 100 MHz 3000 MHz 6 1.88 14.00 7.4:1 28 50 SPI 12L QFN 2x2 2.3–3.6 2000

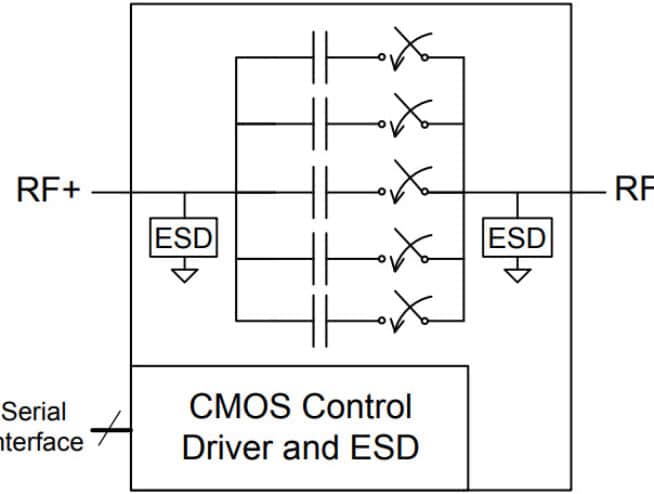

PE64904 5-bit; 32 states 100 MHz 3000 MHz 30 1.10 5.10 4.6:1 10 35 SPI 10L QFN 2x2 2.3–3.6 1500

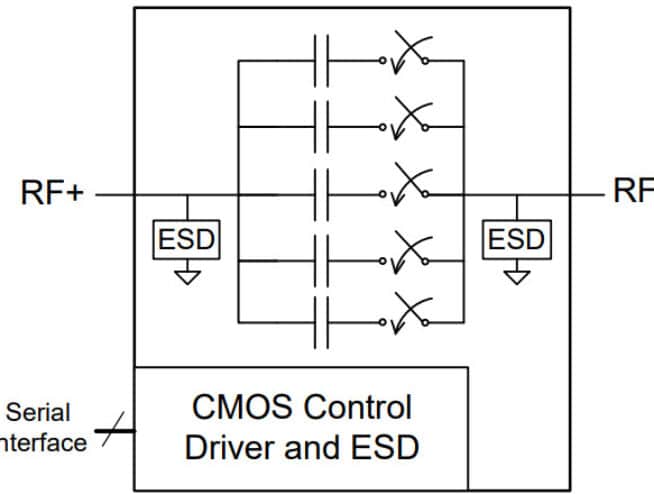

PE64906 5-bit; 32 states 100 MHz 3000 MHz 30 0.90 4.60 5.1:1 40 40 SPI 10L QFN 2x2 2.3–4.8 2000

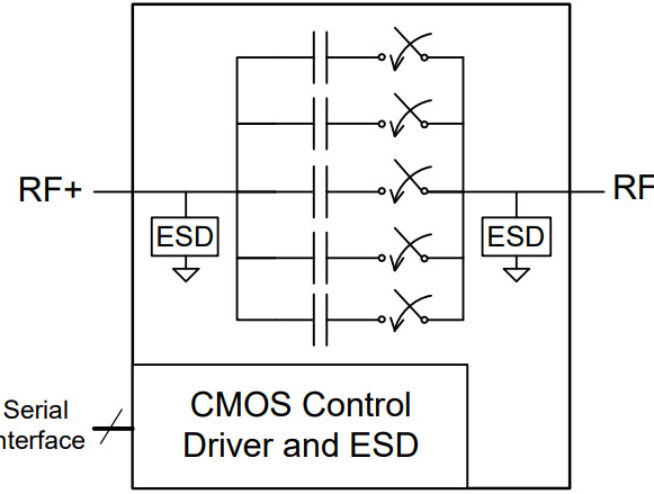

PE64907 5-bit; 32 states 100 MHz 3000 MHz 30 0.85 2.40 2.82:1 37 41 SPI 10L QFN 2x2 2.3–4.8 2000
PE64909 4-bit; 16 states 100 MHz 3000 MHz 30 0.60 2.35 3.9:1 40 40 SPI 10L QFN 2x2 2.3–4.8 2000
