| Product | Store | Datasheet | Description | Freq. | Typ. Iso (dB) | LO Drive (dBm) | IIP3 (dBm) | Package | Package (mm) | Conv Loss (dB) | ESD HBM (V) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | LO-RF | LO-IF | Min | Max | |||||||||

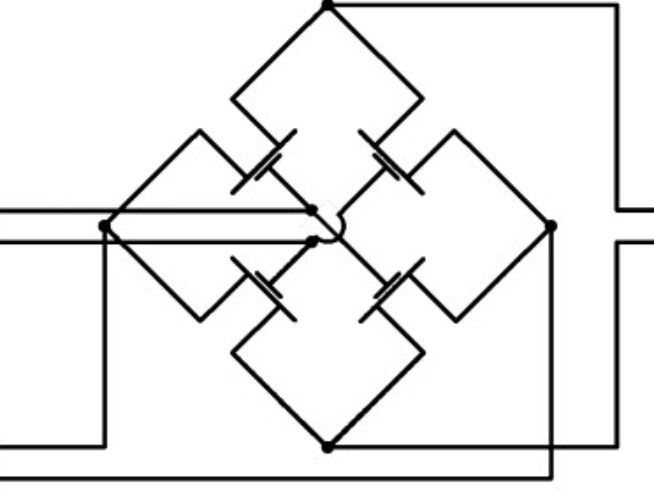

| PE4140 |
|
|
Low Conversion Loss | DC | 6 GHz | 25–40 | 25–40 | ₋ | +20 | 32 | 6L DFN | 3x3 | 6.5–7.5 | 100 |

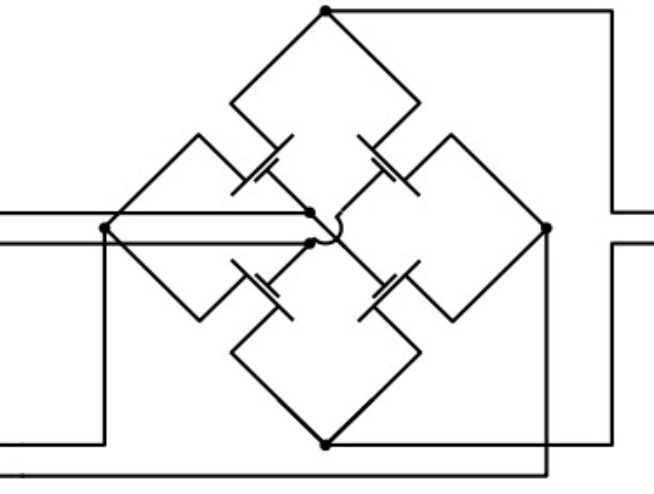

| PE4141 |
|
|
High Linearity | DC | 1000 MHz | 40 | 40 | ₋ | +20 | 33 | 8L MSOP | 3x3 | 7.0–8.0 | 100 |

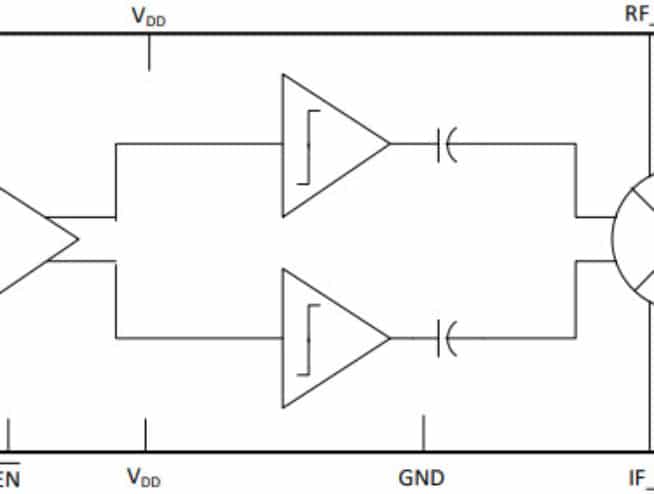

| PE4151 |
|
|
High Linearity | 136 MHz | 520 MHz | 43 | 40 | –10 | –6 | 26 | 10L MSOP | 3x3 | 6.5–8.5 | 1000 |

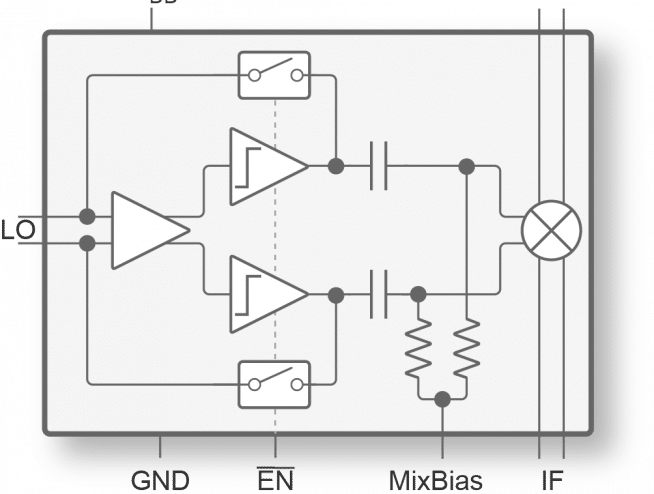

| PE4152 |
|
|
High Linearity | 136 MHz | 941 MHz | 30–60 | 22–58 | –10 | +23 | 26 | 20L QFN | 4x4 | 6.5–7.5 | 1000 |
