Monolithic Phase & Amplitude Controllers (MPACs)

Key Features

Reliable phase and amplitude control for next-generation communications
Monolithic CMOS solution that integrates RF, analog and digital

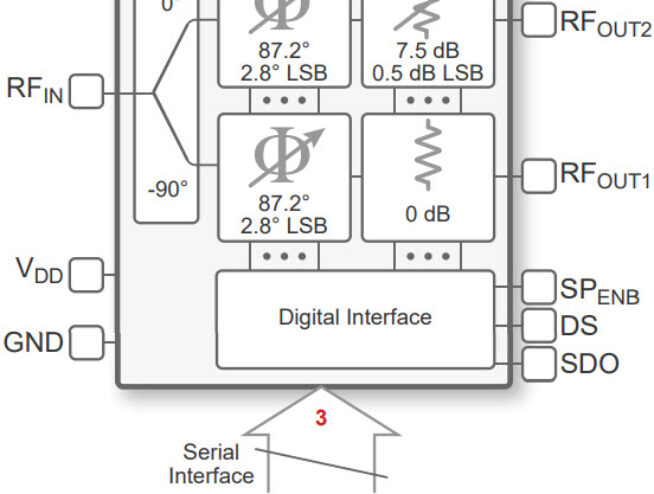

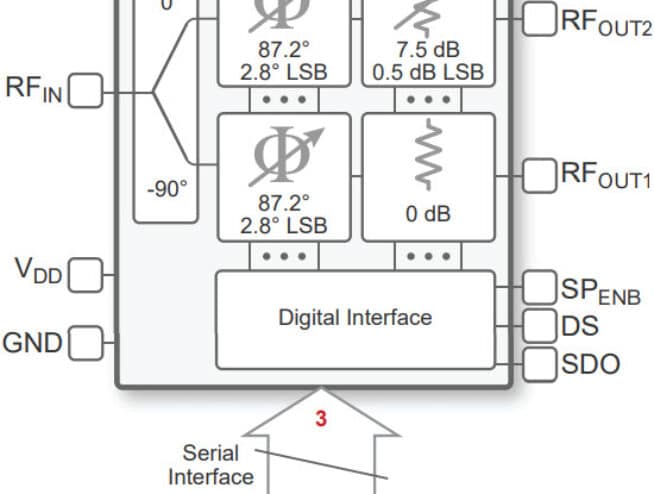

Integrated solution for Doherty power amplifier optimization (MPAC–Doherty)

RF Product Catalog

View the pSemi 2022-2023 RF product
catalog to see our complete RF
product portfolio.

Product	Store	Datasheet	Description	Freq.		Typ. IL (dB)	P1dB/P0.1dB (dBm)	IIP3 (dBm)	DPS Range/Step (deg) / Bits	DSA Range/Step (dB) / Bits	Package	Package (mm)	Programming Mode	VDD Range (V)	IDD (mA)	ESD HBM (V)
Product	Store	Datasheet	Description	Min	Max	Typ. IL (dB)	P1dB/P0.1dB (dBm)	IIP3 (dBm)	DPS Range/Step (deg) / Bits	DSA Range/Step (dB) / Bits	Package	Package (mm)	Programming Mode	VDD Range (V)	IDD (mA)	ESD HBM (V)
PE46120			MPAC-Doherty	1800 MHz	2200 MHz	6.90	-/35.0	60	87.2/2.8/5	7.5/0.5/4	32L QFN	6x6	Serial	2.3–5.5	350	1000
PE46130			MPAC-Doherty	2300 MHz	2700 MHz	7.20	-/35.0	70	87.2/2.8/5	7.5/0.5/4	32L QFN	6x6	Serial	2.3–5.5	350	1500
PE46140			MPAC-Doherty	3400 MHz	3800 MHz	6.50	-/35.0	60	87.2/2.8/5	7.5/0.5/4	32L QFN	6x6	Serial	2.3–5.5	350	1500
