UltraCMOS® RF Digital Step Attenuator

UltraCMOS® RF Digital Step Attenuator

PE43665

EAR99
ico-download-2PDF

END OF LIFE (EOL)

This product is currently going through the EOL process. It has a last-time buy date of September 27, 2026 and a final ship date of March 27, 2027. Replace with PE4314. For more information, please contact your local sales representative.

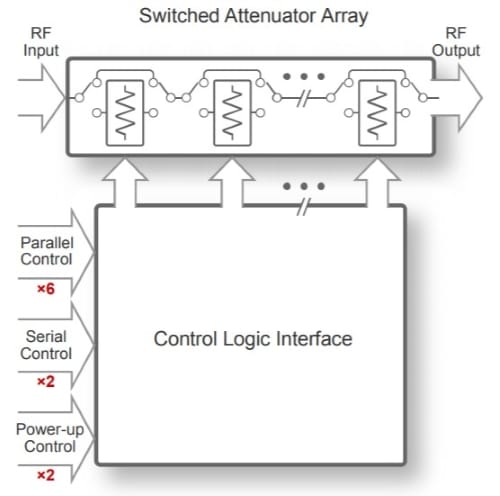

The PE43665 is a 75Ω, high-linearity, 6-bit RF digital step attenuator (DSA) covering a 31.5 dB attenuation range in 0.5 dB steps. The PE43665 provides both a parallel (latched or direct mode) and serial CMOS control interface, operates on a single 3V supply and maintains high attenuation accuracy over frequency and temperature. It also has a unique control interface that allows the user to select an initial attenuation state at power-up. The PE43665 exhibits very low insertion loss and low power consumption. This functionality is delivered in a 4 × 4 mm QFN footprint.

Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

Description6-bit; 64 states
Min Freq.1 MHz
Max Freq.2000 MHz
Typ. IL (dB)1.4
Max Typ. IL (dB)1.8
IIP3 (dBm)52
Attn Range (dB)0.00–31.50
Attn Step (dB)0.5
InterfaceParallel (latched; direct); Serial
Bits6
Attenuation Accuracy (dB @ 1 GHz)±(0.15 + 4% of setting)
Switching Time1 ns
ESD HBM (V)500
Package (mm)4x4
Package20L QFN
PCN/EOL

EOL Notice

ECCNEAR99

Lifecycle: Last Time Buy

About Product

Key Features

      75Ω impedance
      Attenuation: 0.5 dB steps to 31.5 dB
      Low distortion for CATV and multi-carrier applications
      Flexible parallel and serial programming interfaces
      Unique power-up state selection
      Positive CMOS control logic
      High attenuation accuracy and linearity over temperature and frequency
      Very low power consumption
      Single-supply operation
      Package: 20-lead 4 × 4 mm QFN
