UltraCMOS® RF Digital Step Attenuator

UltraCMOS® RF Digital Step Attenuator

PE43650

EAR99
ico-download-2PDF

END OF LIFE (EOL)

This product is currently going through the EOL process. It has a last-time buy date of September 27, 2026 and a final ship date of March 27, 2027. Replace with PE43705. For more information, please contact your local sales representative.

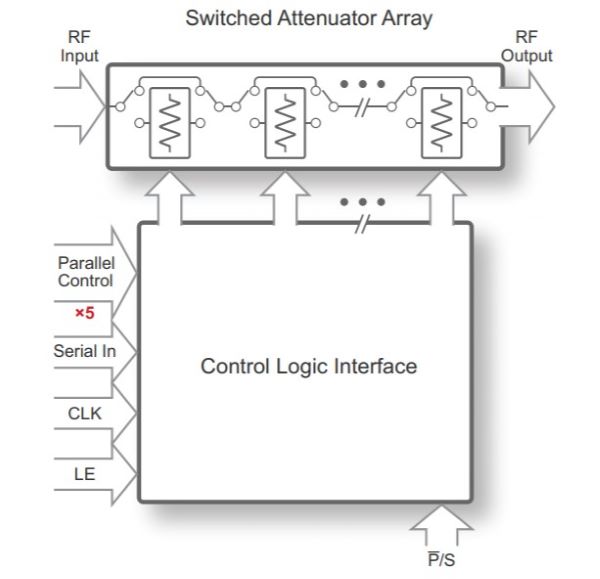

The PE43650 is a high linearity, 5-bit RF digital step attenuator (DSA). This highly versatile DSA covers a 15.5 dB attenuation range in 0.5 dB steps. The PE43650 50Ω RF DSA provides multiple CMOS control interfaces. It maintains high attenuation accuracy over frequency and temperature and exhibits very low insertion loss and low power consumption. Performance does not change with VDD due to on-board regulator. This pSemi DSA is available in a 4 × 4 mm 24-lead QFN footprint.

Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

Description5-bit; 32 states
Min Freq.9 kHz
Max Freq.6 GHz
Typ. IL (dB)2.4
Max Typ. IL (dB)29
IIP3 (dBm)58
Attn Range (dB)0.00–15.50
Attn Step (dB)0.5
InterfaceParallel (Latched, Direct), Serial
Bits5
Attenuation Accuracy (dB @ 1 GHz)±(0.3/+0.30 of setting)
Switching Time4000 ns
ESD HBM (V)500
Package (mm)4x4
Package24L QFN
PCN/EOL

EOL Notice

ECCNEAR99

Lifecycle: Last Time Buy

About Product

Key Features

      Attenuation: 0.5 dB steps to 15.5 dB
      High linearity: Typical +58 dBm IP3
      Excellent low-frequency performance
      Programming modes: Direct parallel, latched parallel and serial
      CMOS-compatible
      No DC blocking capacitors required
      Packaging: 24-lead 4 × 4 × 0.85 mm QFN
