Ultra-linear Broadband Quad MOSFET array

Ultra-linear Broadband Quad MOSFET array

PE4141

ico-download-2PDF

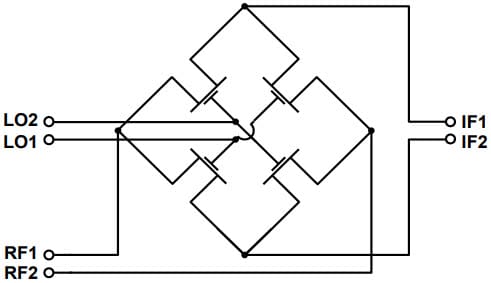

The PE4141 is a high linearity passive broadband Quad MOSFET array with high dynamic range performance capable of operation up to 1 GHz. This quad array operates with differential signals at all ports (RF, LO, IF), allowing an analog multiplexer to be built that uses LO ports as digital controls, RF and IF port as single-ended or differential inputs/outputs. The PE4141 switches the differential input to the differential output at the LO switching rate. Packaged in an 8-lead MSOP package, the PE4141 is capable of handling highly magnetic environments such as magnetic resonance imaging (MRI).

Contact Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

DescriptionHigh Linearity
Min Freq.DC
Max Freq.1000 MHz
Typ. Iso (dB) LO-RF40
Typ. Iso (dB) LO-IF40
Max LO Drive (dBm)20
Conv Loss (dB)7.0–8.0
IIP3 (dBm)33
ESD HBM (V)100
Package (mm)3x3
Package8L MSOP
PCN/EOL

PCN – January 16, 2018: Wafer Fabrication Process, Manufacturing Site, Ordering codes change

About Product

Key Features

      Ultimate quad MOSFET array
      Very high linearity
      Low magnetic
      Ideal for mixer applicationis
      Up/down conversion
      Low conversion loss
      High LO isolation
      Packaging: 8-lead MSOP

Products displayed on this site are protected under one or more of the following U.S. Patents.
