Low Frequency Passive Mixer with Integrated LO Amplifier

The PE4151 is an ultra-high linearity quad metal-oxide-semiconductor field-effect transistor (MOSFET) mixer with an integrated local oscillator (LO) amplifier. The LO amplifier allows for LO drive levels of less than 0 dBm to produce third-order intercept point (IIP3) values similar to a quad MOSFET array driven with a 15 dBm LO drive. It is designed for use in upconversion and downconversion applications and is ideal for highly magnetic environments such as medical applications. The PE4151 operates with differential signals at the RF and IF ports while the LO port can be either differential or single-ended.

Low Frequency Passive Mixer with Integrated LO Amplifier

PE4151


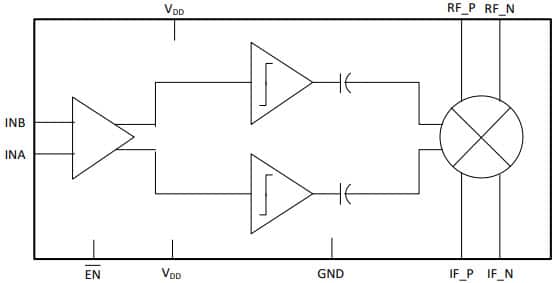

The PE4151 is an ultra-high linearity quad metal-oxide-semiconductor field-effect transistor (MOSFET) mixer with an integrated local oscillator (LO) amplifier. The LO amplifier allows for LO drive levels of less than 0 dBm to produce third-order intercept point (IIP3) values similar to a quad MOSFET array driven with a 15 dBm LO drive. It is designed for use in upconversion and downconversion applications and is ideal for highly magnetic environments such as medical applications. The PE4151 operates with differential signals at the RF and IF ports while the LO port can be either differential or single-ended.

Industry-Leading Product

Specifications

DescriptionHigh Linearity
Min Freq.136 MHz
Max Freq.520 MHz
Max LO Drive (dBm)–6
Min LO Drive (dBm)–10
IIP3 (dBm)26
Package10L MSOP
Package (mm)3x3

About Product

Key Features

      Ultra-high linearity quad MOSFET array with integrated LO amplifier
      Ideal for mobile radio and up or down conversion applications
      Low conversion loss
      High LO isolation
      RoHS-compliant 10-lead MSOP package
      Ideal for highly magnetic environments
      Packaging: 10-lead 3 × 3 × 0.86 mm MSOP
