Power Limiter, 20 MHz–2 GHz

The PE45140 is a HaRP™ technology-enhanced RF power limiter designed for use in tactical and military communications receivers, land-mobile-radio (LMR) and other high performance power limiting applications. This power limiter has symmetric RF ports that limit incident power up to 50W pulsed in both biased and unbiased conditions. It provides an extremely fast limiting response to undesired high power signals while delivering low insertion loss and high linearity under safe operating power levels.

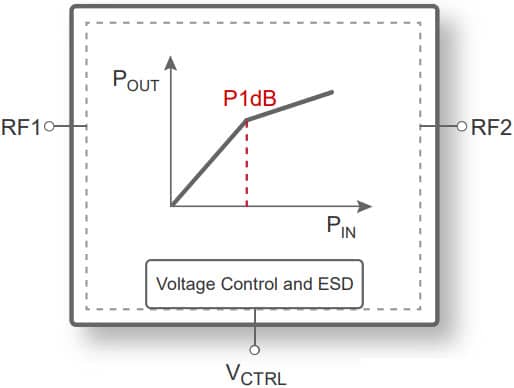

Unlike traditional PIN diode solutions the limiting threshold can be adjusted through a low current control voltage (VCTRL), eliminating the need for external components such as DC blocking capacitors, RF choke inductors, and bias resistors.

Power Limiter, 20 MHz–2 GHz

PE45140


The PE45140 is a HaRP™ technology-enhanced RF power limiter designed for use in tactical and military communications receivers, land-mobile-radio (LMR) and other high performance power limiting applications. This power limiter has symmetric RF ports that limit incident power up to 50W pulsed in both biased and unbiased conditions. It provides an extremely fast limiting response to undesired high power signals while delivering low insertion loss and high linearity under safe operating power levels.

Unlike traditional PIN diode solutions the limiting threshold can be adjusted through a low current control voltage (VCTRL), eliminating the need for external components such as DC blocking capacitors, RF choke inductors, and bias resistors.

Industry-Leading Product

Specifications

DescriptionLow Threshold (Limiting, Reflecting)
Min Freq.20 MHz
Max Freq.2000 MHz
IIP3 (dBm)64
Adjustable Limiting Threshold Max (dBm)32
Adjustable Limiting Threshold Min (dBm)22
Max Power Rating (dBm)47
Package12L QFN
Package (mm)3x3

About Product

Key Features

      Monolithic drop in solution with no external components required
      Adjustable power limiting threshold from +22 dBm to +32 dBm
      Max power handling
      Superior ESD rating and ESD protection
      Unbiased power limiting operation
      Fast response and recovery time of 1 ns
      Dual mode operation
      Packaging: 12-lead 3 × 3 mm QFN
