UltraCMOS® SPDT RF Switch

UltraCMOS® SPDT RF Switch

PE42726

ico-download-2PDF

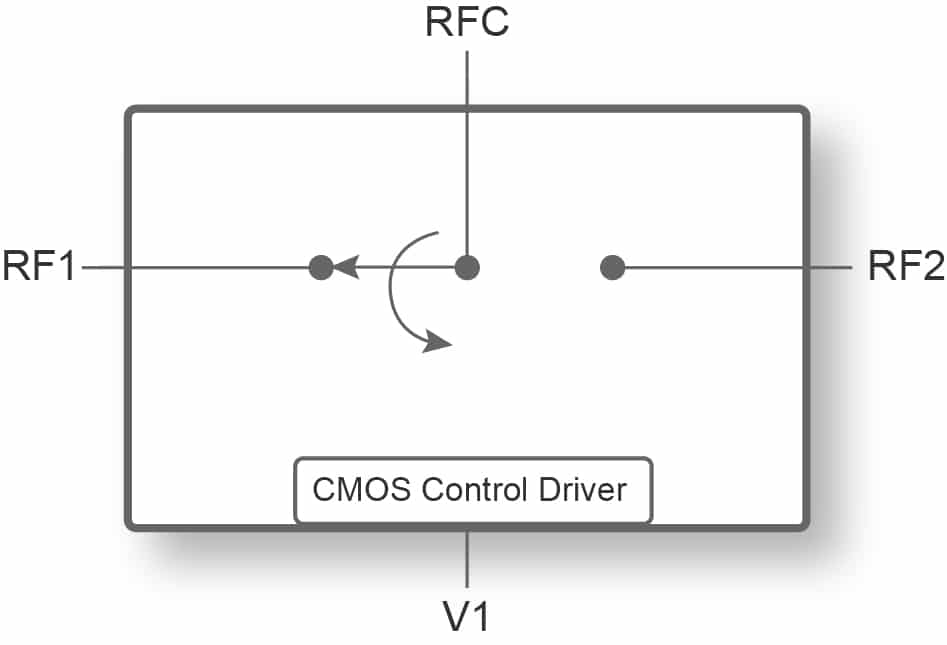

The PE42726 is a HaRP™ technology-enhanced reflective SPDT RF switch designed for use in cable applications including DOCSIS 3.0/3.1 cable modems, set-top boxes and residential gateways. It delivers high linearity, excellent harmonics performance and high surge immunity in the 5–1794 MHz band. It also features low insertion loss and high isolation performance making the PE42726 ideal for DOCSIS 3.1 applications.

Contact Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

DescriptionSPDT (R)
Min Freq.5 MHz
Max Freq.1794 MHz
Typ. IL (dB)0.1
Max Typ. IL (dB)0.4
Min Typ. IL (dB)0.1
Max Typ. Iso (dB)39
Min Typ. Iso (dB)21
P1dB/P0.1dB (dBm)87 (dBmV)
Max Power Rating (dBm)86 (dBmV)
VDD Range (V)2.3–5.5
Switching Time38 µs
ESD HBM (V)2000
Package (mm)3×3
Package12L QFN
About Product

Key Features

      Supports DOCSIS 3.0/3.1 requirements
      Exceptional harmonics
      Best-in-class linearity across frequency band
      Low insertion loss and high isolation performance
      Packaging – 12-lead 3 × 3 × 0.75 mm QFN
