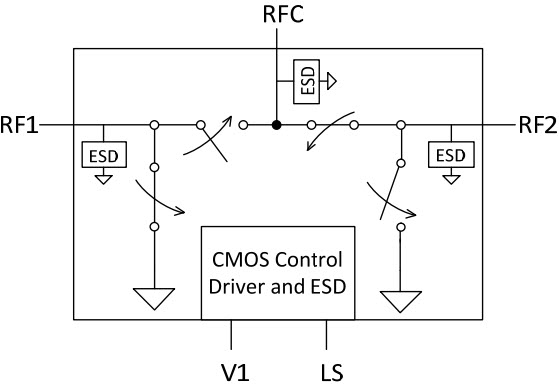

The PE423422 is a HaRP™ technology-enhanced reflective SPDT RF switch. It has received AEC–Q100 Grade 2 certification and meets the quality and performance standards that makes it suitable for use in harsh automotive environments. It is designed to cover a wide range of wireless applications from 100 MHz through 6 GHz, such as automotive infotainment and traffic safety applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

Specifications

DescriptionSPDT (R)
Min Freq.100 MHz
Max Freq.6 GHz
Max Typ. IL (dB)0.9
Min Typ. IL (dB)0.25
Max Typ. Iso (dB)41
Min Typ. Iso (dB)16
P1dB/P0.1dB (dBm)– / 34.0
IIP3 (dBm)73.5
Max Power Rating (dBm)32
VDD Range (V)2.3–5.5
Switching Time2 µs
ESD HBM (V)1000
Package12L QFN
Package (mm)2x2

Key Features

      AEC-Q100 Grade 2 certified
      Supports operating temperature up to +105°C
      Low insertion loss
      High isolation
      Excellent linearity
      High ESD tolerance
      Wide supply range of 2.3V to 5.5V
      Packaging: 12-lead 2 × 2 mm QFN
