UltraCMOS® SPDT RF Switch

PE42359

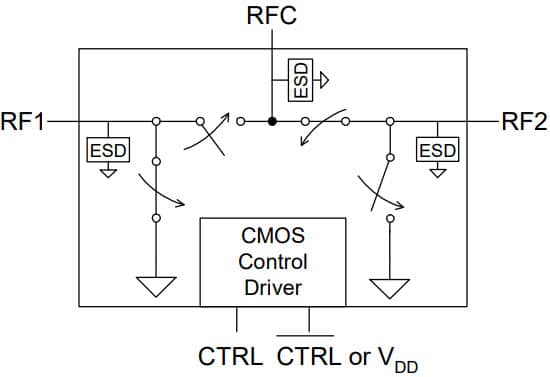

The PE42359 UltraCMOS® RF switch is designed to cover a broad range of applications from 10 MHz through 3 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface, and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply voltage, a typical input 1 dB compression point of 33.5 dBm can be achieved. PE42359 also meets the quality and performance standards for automotive applications and has received AEC-Q100 Grade 2 certification.

Industry-Leading Product

Specifications

DescriptionSPDT (R)
Min Freq.10 MHz
Max Freq.3000 MHz
Max Typ. IL (dB)1.10
Min Typ. IL (dB)0.35
Max Typ. Iso (dB)35
Min Typ. Iso (dB)14
P1/0.1dB (dBm)33.5/-
IIP3 (dBm)55
Package6L SC-70
Package (mm)1.25x2

About Product

Key Features

      AEC-Q100 Grade 2 certified
      Supports operating temperature up to +105°C
      Single-pin or complementary CMOS logic control inputs
      Low insertion loss
      Isolation of 30 dB @ 1000 MHz
      High ESD tolerance of 2kV HBM
      Typical input 1 dB compression point of +33.5 dBm
      1.8V minimum power supply voltage
      Packaging: 6‐lead SC‐70
