UltraCMOS® SP4T RF Switch

The PE423641 is a HaRP™ technology-enhanced reflective SP4T RF switch. It has received AEC-Q100 Grade 2 certification and meets the quality and performance standards that makes it suitable for use in harsh automotive environments. It is designed to cover a wide range of wireless applications from 50 MHz through 3 GHz such as cellular antenna band switching, automotive infotainment and traffic safety applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

UltraCMOS® SP4T RF Switch

PE423641

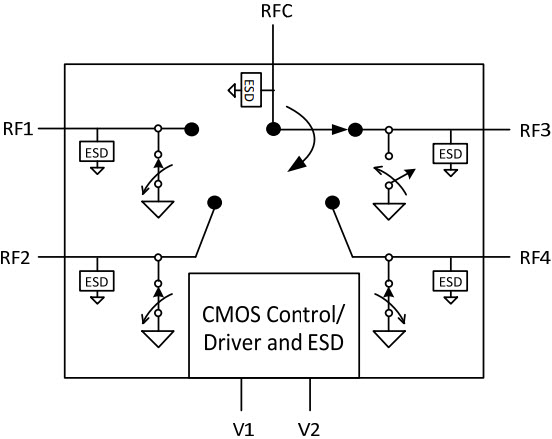

The PE423641 is a HaRP™ technology-enhanced reflective SP4T RF switch. It has received AEC-Q100 Grade 2 certification and meets the quality and performance standards that makes it suitable for use in harsh automotive environments. It is designed to cover a wide range of wireless applications from 50 MHz through 3 GHz such as cellular antenna band switching, automotive infotainment and traffic safety applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

Industry-Leading Product

Specifications

DescriptionSP4T (R)
Min Freq.50 MHz
Max Freq.3000 MHz
Max Typ. IL (dB)0.95
Min Typ. IL (dB)0.50
Max Typ. Iso (dB)32
Min Typ. Iso (dB)22
P1/0.1dB (dBm)-/37.0
IIP3 (dBm)68
Package16L QFN
Package (mm)3x3

About Product

Key Features

      AEC-Q100 Grade 2 certified
      Supports operating temperature up to +105°C
      HaRP™ technology enhancements provide excellent linearity
      Low insertion loss
      High isolation
      High ESD performance
      Integrated decoder for 2-pin control
      Packaging: 16-lead 3 × 3 mm QFN
