UltraCMOS® SPDT RF Switch

PE42524

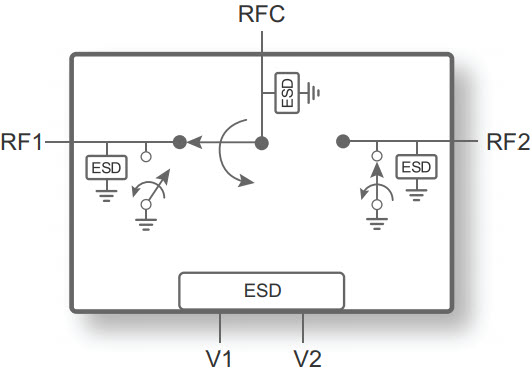

The PE42524 is a HaRP™ technology-enhanced reflective SPDT RF switch die that supports a wide frequency range from 10 MHz to 40 GHz. This wideband flip-chip switch delivers high isolation performance, excellent linearity and low insertion loss, making this device ideal for test and measurement, microwave backhaul, radar and military communications (mil-comm) applications. At 30 GHz, the PE42524 exhibits 17 dB active port return loss, 47 dB isolation and 2.2 dB insertion loss. No blocking capacitors are required if DC voltage is not present on the RF ports.

Industry-Leading Product

Specifications

DescriptionSPDT (R)
Min Freq.10 MHz
Max Freq.40 GHz
Max Typ. IL (dB)5.50
Min Typ. IL (dB)0.60
Max Typ. Iso (dB)84
Min Typ. Iso (dB)33
P1/0.1dB (dBm)32.5/-
IIP3 (dBm)52
PackageFlip-chip
Package (mm)

About Product

Key Features

      Wideband support up to 40 GHz
      High port to port isolation
      Excellent linearity performance
      Fast RF Trise/Tfall time of 55 ns
      Low insertion loss
      Flip-chip die
