UltraCMOS® SP4T RF Switch

PE42542

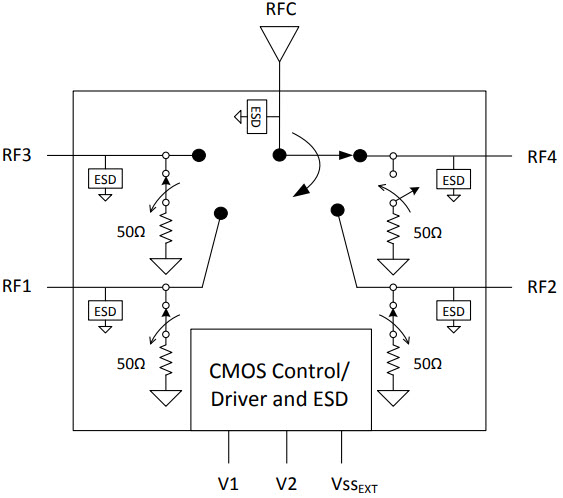

The PE42542 is a HaRP™ technology-enhanced absorptive SP4T RF switch designed for use in test/ATE, microwave and other wireless applications. This broadband general purpose switch maintains excellent RF performance and linearity from 9 kHz through 18 GHz. The PE42542 exhibits low insertion loss, high isolation performance and has fast settling time. No blocking capacitors are required if DC voltage is not present on the RF ports.

Industry-Leading Product

Specifications

DescriptionSP4T (A)
Min Freq.9 kHz
Max Freq.18 GHz
Max Typ. IL (dB)3.90
Min Typ. IL (dB)0.70
Max Typ. Iso (dB)90
Min Typ. Iso (dB)27
P1dB/P0.1dB (dBm)33.0 / –
IIP3 (dBm)58
Max Power Rating (dBm)30
Package29L LGA
Package (mm)4x4
VDD Range (V)2.3–5.5
Switching Time3 µs
ESD HBM (V)3500

About Product

Key Features

      HaRP technology-enhanced
      Low insertion loss
      High isolation
      ESD performance
