UltraCMOS® SP4T RF Switch

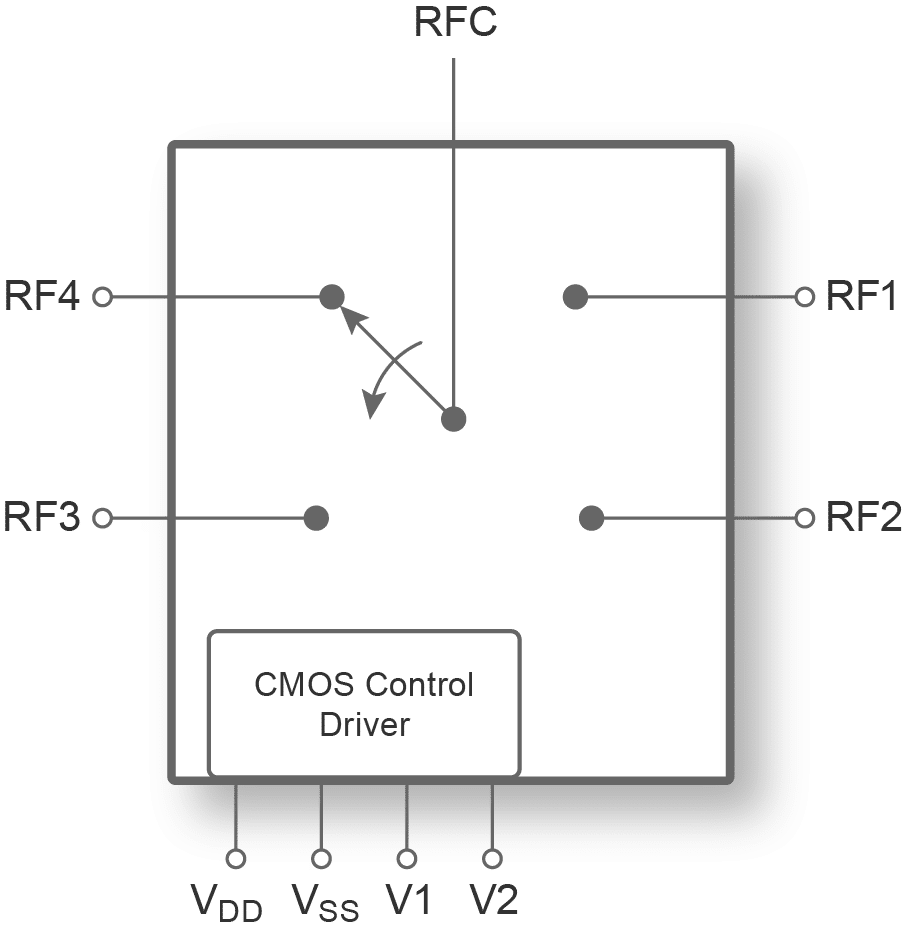

The PE42545 is a HaRP™ technology-enhanced reflective SP4T RF switch die that supports a wide frequency range from 9 kHz to 67 GHz. It delivers low insertion loss, fast switching time and high isolation performance, making this device ideal for test and measurement (T&M), 5G mmWave, microwave backhaul, radar and satellite communication applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

PE42545 UltraCMOS® SP4T RF Switch

UltraCMOS® SP4T RF Switch

PE42545


The PE42545 is a HaRP™ technology-enhanced reflective SP4T RF switch die that supports a wide frequency range from 9 kHz to 67 GHz. It delivers low insertion loss, fast switching time and high isolation performance, making this device ideal for test and measurement (T&M), 5G mmWave, microwave backhaul, radar and satellite communication applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

Industry-Leading Product

Specifications

DescriptionSP4T (R)
Min Freq.9 kHz
Max Freq.67 GHz
Max Typ. IL (dB)4.5
Min Typ. IL (dB)1
Max Typ. Iso (dB)46
Min Typ. Iso (dB)22.5
P1dB/P0.1dB (dBm)33.5 / 28
IIP3 (dBm)49
Max Power Rating (dBm)30
Max Temp (ºC)105
VDD Range (V)3.15–3.45
Switching Time60 ns
ESD HBM (V)2000
PackageFlip-chip

About Product

Key Features

      Wideband support up to 67 GHz
      Low insertion loss
      Fast switching time
      High port-to-port isolation
      -40 °C to +105 °C operating temperature support
      Package: Flip-chip die
