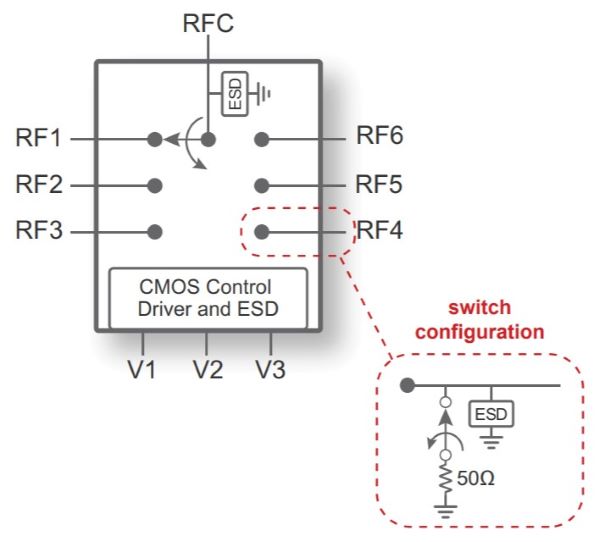

The PE426462 is a HaRP™ technology-enhanced absorptive SP6T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers low insertion loss, fast RF TRISE/TFALL time and high isolation in the operating temperature range from –55°C to +125°C. It is ideal for harsh industrial applications that require extended support in this temperature range. No blocking capacitors are required if DC voltage is not present on the RF ports.
| Description | SP6T (A) |
| Min Freq. | 10 MHz |
| Max Freq. | 8 GHz |
| Max Typ. IL (dB) | 1.6 |
| Min Typ. IL (dB) | 0.7 |
| Max Typ. Iso (dB) | 68 |
| Min Typ. Iso (dB) | 30 |
| P1dB/P0.1dB (dBm) | 40.0 / 37.5 |
| IIP3 (dBm) | 60 |
| Max Power Rating (dBm) | 31 |
| Max Temp (ºC) | 125 |
| VDD Range (V) | 2.3–5.5 |
| Switching Time | 0.21 µs |
| ESD HBM (V) | 1000 |
| Package (mm) | 4x4 |
| Package | 24L QFN |
| Specs Table | Enter Table Here |
