UltraCMOS® SP4T RF Switch

UltraCMOS® SP4T RF Switch

PE42442

ico-download-2PDF

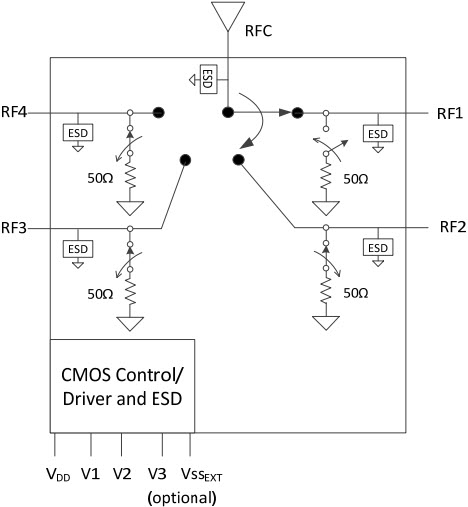

The PE42442 is a HaRP™ technology-enhanced absorptive SP4T RF switch designed for use in 3G/4G wireless infrastructure and other high performance RF applications.

This switch is a pin-compatible four-throw version of the PE42451 with a wider frequency and power supply range. It is comprised of four symmetric RF ports with very high isolation up to 6 GHz. An integrated CMOS decoder facilitates a two- or three-pin 1.8V CMOS control interface. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

Contact Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

X-MicrowaveYes
DescriptionSP4T (A)
Min Freq.30 MHz
Max Freq.6 GHz
Max Typ. IL (dB)2.35
Min Typ. IL (dB)0.85
Max Typ. Iso (dB)67
Min Typ. Iso (dB)32
P1dB/P0.1dB (dBm)35.0 / 33.0
IIP3 (dBm)58
Max Power Rating (dBm)33
Max Temp (ºC)125
VDD Range (V)2.3–5.5
Switching Time0.255 µs
ESD HBM (V)2000
Package (mm)4x4
Package24L QFN
PCN/EOL

PCN – December 13, 2021: Product Specification

About Product

Key Features

      Four symmetric, absorptive RF ports
      High isolation
      High linearity
      1.8V control logic-compatible
      125 °C operating temperature
      Fast switching time of 255 ns
      Two- or three-pin CMOS logic control
      External negative supply option
      High ESD tolerance
