UltraCMOS® SP4T RF Switch – PE42445

NEW
UltraCMOS® SP4T RF Switch – PE42445

PE42445

ico-download-2PDF

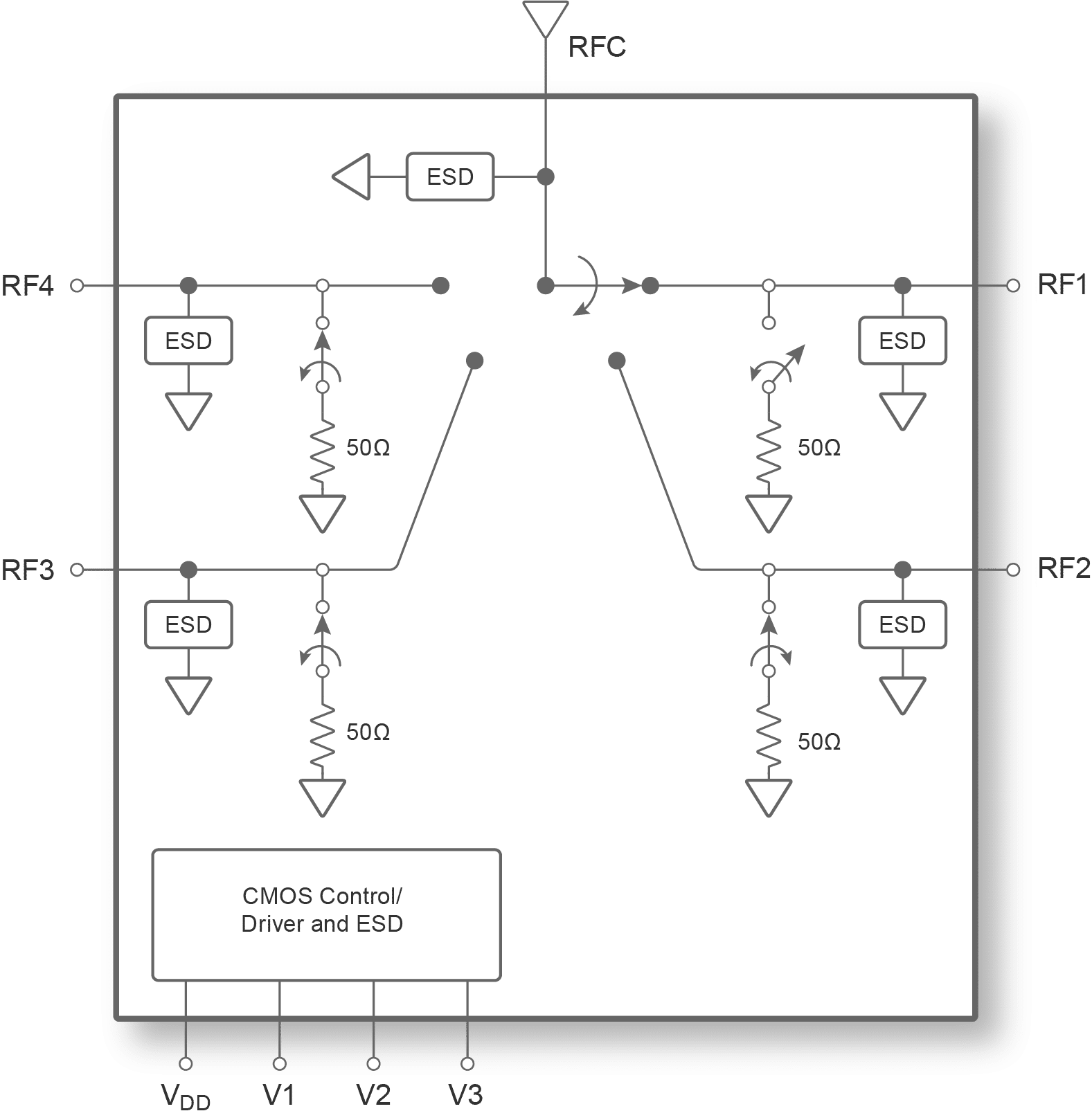

The PE42445 is a HaRP™ technology-enhanced SP4T RF switch designed for use in 4G/5G wireless infrastructure and other high performance RF applications. It is comprised of four symmetric RF ports with very high isolation up to 8.5 GHz. The PE42445 is manufactured on pSemi’s UltraCMOS® process, a patented variation of silicon-on-insulator (SOI) technology. pSemi’s HaRP technology enhancements deliver high isolation, linearity and excellent harmonics performance.

Contact Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

New ProductNEW
DescriptionSP4T (A)
Min Freq.10 MHz
Max Freq.8.5 GHz
Max Typ. IL (dB)1
Min Typ. IL (dB)0.57
Max Typ. Iso (dB)72
Min Typ. Iso (dB)46
P1dB/P0.1dB (dBm)– / 37.0
IIP3 (dBm)65.5
Max Power Rating (dBm)34
Max Temp (ºC)125
VDD Range (V)2.3–5.5
Switching Time0.20 µs
ESD HBM (V)2000
Package (mm)3×3
Package20L LGA
About Product

Key Features

      Operating frequency: Up to 8.5 GHz
      High isolation: 62 dB @ 4 GHz
      Low insertion loss: 0.7 dB @ 4 GHz
      High linearity: 65 dBm IIP3 @ 3.8 GHz
      Fast switching time: 200 nsec
      -40°C to +125 °C operating temperature
      Packaging – 20-lead 3×3 mm LGA
