UltraCMOS® SP8T RF Switch

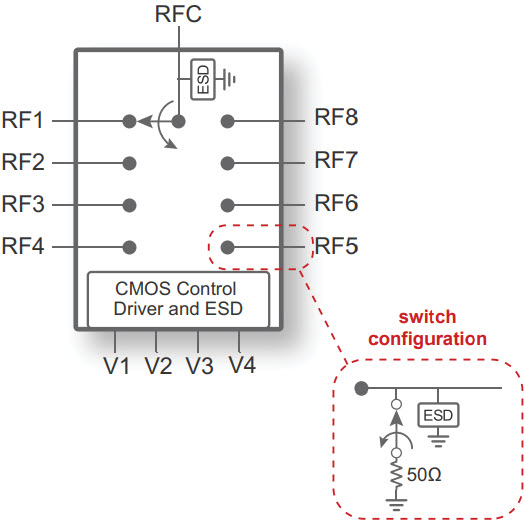

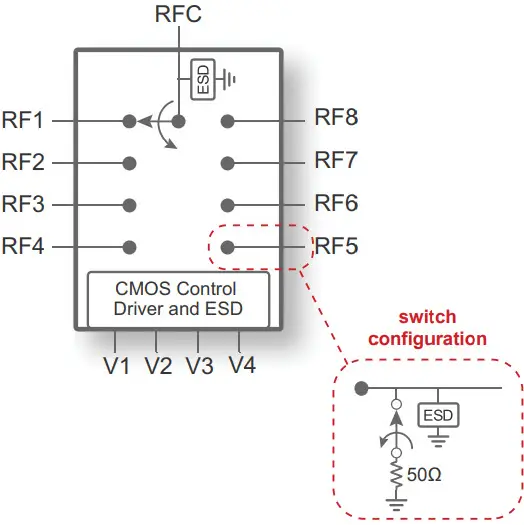

The PE42482 is a HaRP™ technology-enhanced absorptive SP8T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers high isolation, low insertion loss and fast switching time, making this device ideal for filter bank switching and RF signal routing in wireless infrastructure and wireless applications up to 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

PE42482 - UltraCMOS® SP8T RF Switch

UltraCMOS® SP8T RF Switch

PE42482


The PE42482 is a HaRP™ technology-enhanced absorptive SP8T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers high isolation, low insertion loss and fast switching time, making this device ideal for filter bank switching and RF signal routing in wireless infrastructure and wireless applications up to 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

Industry-Leading Product

Specifications

DescriptionSP8T (A)
Min Freq.10 MHz
Max Freq.8 GHz
Max Typ. IL (dB)1.60
Min Typ. IL (dB)0.70
Max Typ. Iso (dB)65
Min Typ. Iso (dB)30
P1/0.1dB (dBm)40.0/37.5
IIP3 (dBm)60
Package24L QFN
Package (mm)4x4

About Product

Key Features

      High isolation: 41 dB @ 6 GHz
      Low insertion loss: 1.1 dB @ 6 GHz
      Fast switching time of 227 ns
      Power handling of 33 dBm CW
      Logic select (LS) pin provides maximum control logic flexibility
      Terminated all-off state mode
      Packaging: 24-lead 4 × 4 mm QFN
