UltraCMOS® SP4T RF Switch

PE42440

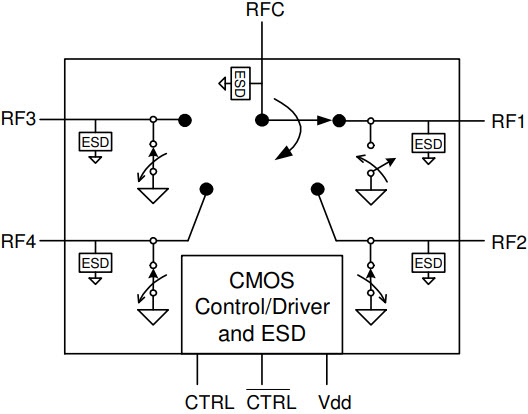

The PE42440 is a HaRP™-enhanced SP4T RF switch developed on the UltraCMOS® process technology. This general-purpose switch contains four identical RF ports and can be used in a multitude of applications up to 3000 MHz. It integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and requires no DC blocking capacitors. This RoHS-compliant part is available in a standard 3 x 3 x 0.75 mm QFN package.

Industry-Leading Product

Specifications

DescriptionSP4T (R)
Min Freq.50 MHz
Max Freq.3000 MHz
Max Typ. IL (dB)0.85
Min Typ. IL (dB)0.45
Max Typ. Iso (dB)34
Min Typ. Iso (dB)22
P1/0.1dB (dBm)41.5/-
IIP3 (dBm)67
Package16L QFN
Package (mm)3x3

About Product

Key Features

      HaRP™-enhanced technology for unparalleled linearity
      Very low insertion loss: 0.45 dB @ 1000 MHz, 0.5 dB @ 2000 MHz
      Very high isolation: 34 dB @ 1000 MHz, 28 dB @ 2000 MHz
      Exceptionally high ESD tolerance
      Integrated decoder for 2-pin control
      Low 4.5Ω series ON resistance
      No blocking capacitors required
      Packaging: 16-lead 3 × 3 × 0.75 mm QFN
