UltraCMOS® SPDT RF Switch

PE4250

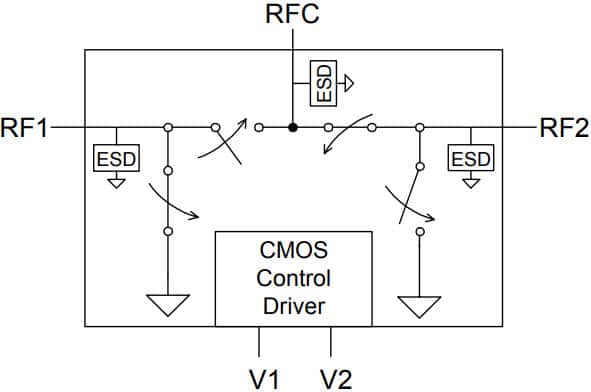

The PE4250 is a HaRP™-enhanced reflective SPDT RF switch for use in general switching applications and mobile infrastructure. This device offers a flexible supply voltage of 3.3/5V, single-pin or complementary pin control inputs, and 4000V ESD tolerance. It presents a simple alternative solution to pin diode and mechanical relay switches.

Industry-Leading Product

Specifications

DescriptionSPDT (R)
Min Freq.10 MHz
Max Freq.3000 MHz
Max Typ. IL (dB)0.75
Min Typ. IL (dB)0.60
Max Typ. Iso (dB)51
Min Typ. Iso (dB)40
P1/0.1dB (dBm)30.5/-
IIP3 (dBm)59
Package8L MSOP
Package (mm)3x3

About Product

Key Features

      HaRP™ technology enhanced
      Low insertion loss: 0.65 dB @ 1000 MHz
      High isolation: 51 dB @ 1000 MHz
      P1dB typical: +30.5 dBm
      IIP3 typical: +59 dBm
      Fast switching time: 150 ns
      Flexible supply voltage: 3.3V ±10% or 5.0V ±10% supply
      Excellent ESD protection: 4000V HBM
      No blocking capacitors required
      Single pin or complementary control inputs
      Packaging: 8-lead MSOP
