UltraCMOS® SP12T RF Switch

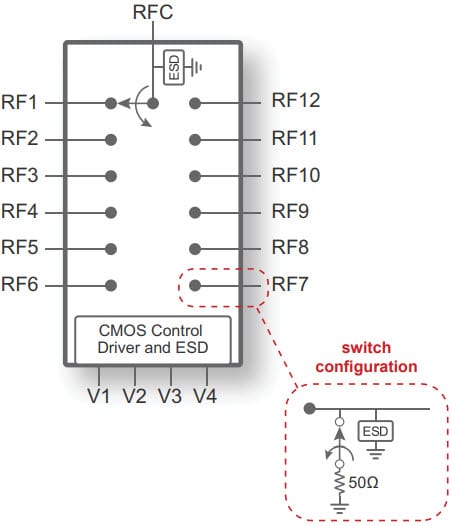

The PE42412 is a HaRP™ technology-enhanced absorptive SP12T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers high isolation, low insertion loss and fast switching time, making this device ideal for filter bank switching and RF signal routing in wireless infrastructure and wireless applications up to 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

UltraPE42412 - CMOS® SP12T RF Switch

UltraCMOS® SP12T RF Switch

PE42412


The PE42412 is a HaRP™ technology-enhanced absorptive SP12T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers high isolation, low insertion loss and fast switching time, making this device ideal for filter bank switching and RF signal routing in wireless infrastructure and wireless applications up to 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

Industry-Leading Product

Specifications

DescriptionSP12T (A)
Min Freq.10 MHz
Max Freq.8 GHz
Max Typ. IL (dB)2.40
Min Typ. IL (dB)0.70
Max Typ. Iso (dB)69
Min Typ. Iso (dB)22
P1dB/P0.1dB (dBm)40.0 / 37.5
IIP3 (dBm)60
Max Power Rating (dBm)33
Max Temp (ºC)105
VDD Range (V)2.3–5.5
Switching Time.232 µs
ESD HBM (V)1000
Package32L QFN
Package (mm)5×5

About Product

Key Features

      High isolation: 39 dB @ 6 GHz
      Low insertion loss: 1.3 dB @ 6 GHz
      Fast switching time of 232 ns
      Power handling of 33 dBm CW
      Logic select (LS) pin provides maximum control logic flexibility
      Terminated all-off state mode
      Packaging – 32-lead 5 × 5 × 0.85 mm QFN
