5–7 GHz SOI Wi-Fi Front-end Module

PE565211

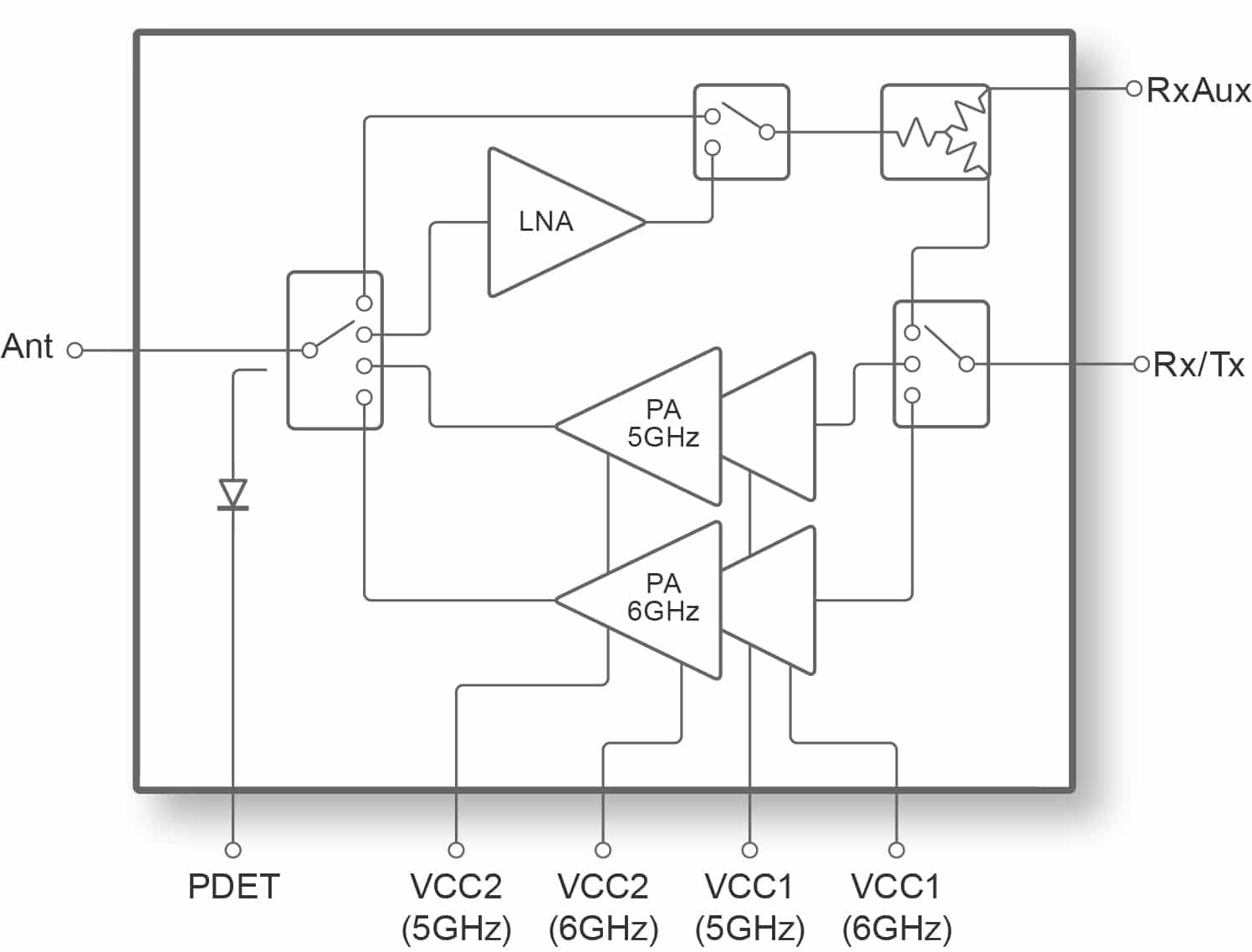

The PE565211 is a high-performance, fully integrated 5–7 GHz 802.11ax Wi-Fi front-end module (FEM) that combines the intelligent integration capabilities of pSemi's patented UltraCMOS® technology. The device provides all the functionality of a fully-matched bypassable amplifier (LNA), a dual-core power amplifier (PA) and two RF switches (SP4T, SP3T). The all-silicon die enables an ultra-compact industry-leading 2.5 x 2.5 mm 16-lead LGA package to minimize valuable PCB layout area, especially for high-density MIMO applications.

Industry-Leading Product

Specifications

Description5–7 GHz Wi-Fi FEM
Min Freq.5150 MHz
Max Freq.7150 MHz
Typ. Tx Gain (dB)27
Typ. Rx Gain (dB)14
Long-packet EVM Performance-41 dB @ 13.0 dBm POUT (HE80)
Package16L LGA
Package (mm)2.5×2.5

About Product

Key Features

      Single-die 5–7 GHz, PA, LNA, bypass path with RxAux port
      Fully-matched input and output
      Integrated logarithmic power detector
      Tx Gain: 5 GHz: 27 dB, 6 GHz: 21 dB typical
      Rx Gain: 5 GHz: 15 dB, 6 GHz: 13 dB typical
      Rx NF: 5 GHz: 2.1 dB, 6 GHz: 2.3 dB typical
      Excellent long packet EVM performance:
      MCS11 5 GHz: -41 dB @ 12.5 dBm (HE80)
      MCS11 6 GHz: -41 dB @ 13.0 dBm (HE80)
      Packaging — Ultra-compact 16-lead 2.5 × 2.5 mm LGA (MSL3)
