2400 MHz SOI Wi-Fi Front-end Module

The PE561221 is a high-performance monolithic Wi-Fi front-end module (FEM) that combines the intelligent integration capabilities of pSemi’s patented UltraCMOS® technology. On a monolithic die, the PE561221 2.4 GHz Wi-Fi FEM integrates a low-noise amplifier (LNA), a power amplifier (PA) and two RF switches (SP4T, SP3T). This all-silicon die is packaged in a compact 16-pin, 2 × 2 mm LGA to meet the latest 802.11ac Wi-Fi chip-set requirements.

Leave a Reply

Your email address will not be published.

You may use these <abbr title="HyperText Markup Language">HTML</abbr> tags and attributes: <a href="" title=""> <abbr title=""> <acronym title=""> <b> <blockquote cite=""> <cite> <code> <del datetime=""> <em> <i> <q cite=""> <s> <strike> <strong>

2400 MHz SOI Wi-Fi Front-end Module

PE561221


The PE561221 is a high-performance monolithic Wi-Fi front-end module (FEM) that combines the intelligent integration capabilities of pSemi's patented UltraCMOS® technology. On a monolithic die, the PE561221 2.4 GHz Wi-Fi FEM integrates a low-noise amplifier (LNA), a power amplifier (PA) and two RF switches (SP4T, SP3T). This all-silicon die is packaged in a compact 16-pin, 2 × 2 mm LGA to meet the latest 802.11ac Wi-Fi chip-set requirements.

Industry-Leading Product

Specifications

Description2400 MHz Wi-Fi FEM
Min Freq.2400 MHz
Max Freq.2500 MHz
Typ. Tx Gain (dB)28
Typ. Rx Gain (dB)14
Long-packet EVM Performance+19 dBm Pout at -40 dB EVM (MCS9)
Package16L LGA
Package (mm)2x2

About Product

Key Features

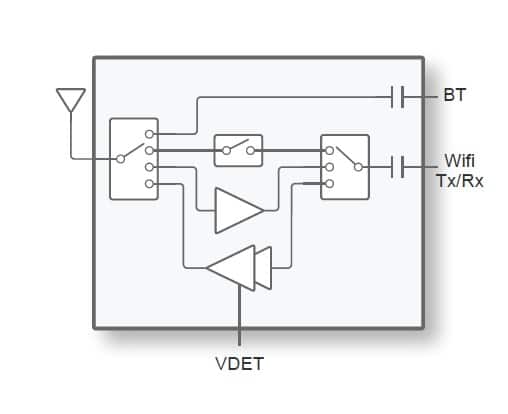

      High performance monolithic SOI 2.4 GHz PA, LNA and SP3/4T switches
