RF Digital Phase Shifter 8-bit, 1.7–2.2 GHz

The PE44820 is a HaRP™ technology-enhanced 8-bit digital phase shifter (DPS) designed for use in phased array and active antenna applications. This DPS covers a phase range of 358.6° in 1.4° steps, maintaining excellent phase and amplitude accuracy across the nominal frequency band of 1.7–2.2 GHz. The PE44820 is also capable of extended frequency operation from 1.1–3.0 GHz for narrow band applications, as detailed in Application Note 45. An integrated digital control interface supports both serial and parallel programming of the phase setting. The PE44820 also features an external negative supply option for a faster switch frequency, and is offered in a 32-lead 5 × 5 × 0.85 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

PE44820 RF Digital Phase Shifter 8-bit, 1.7–2.2 GHz

RF Digital Phase Shifter 8-bit, 1.7–2.2 GHz

PE44820


The PE44820 is a HaRP™ technology-enhanced 8-bit digital phase shifter (DPS) designed for use in phased array and active antenna applications. This DPS covers a phase range of 358.6° in 1.4° steps, maintaining excellent phase and amplitude accuracy across the nominal frequency band of 1.7–2.2 GHz. The PE44820 is also capable of extended frequency operation from 1.1–3.0 GHz for narrow band applications, as detailed in Application Note 45. An integrated digital control interface supports both serial and parallel programming of the phase setting. The PE44820 also features an external negative supply option for a faster switch frequency, and is offered in a 32-lead 5 × 5 × 0.85 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

Industry-Leading Product

Specifications

Description8-bit DPS
Min Freq.1700 MHz
Max Freq.2200 MHz
Typ. IL (dB)6.0
IIP3 (dBm)60
DPS Range/Step (deg) / Bits358.6/1.4/8
RMS Phase Error (deg)1.0
RMS Amplitude Error (dB)0.1
Settling Time (ns)365
VDD Range (V)2.3–5.5
ESD HBM (V)500
Package32L QFN
Package (mm)5x5

About Product

Key Features

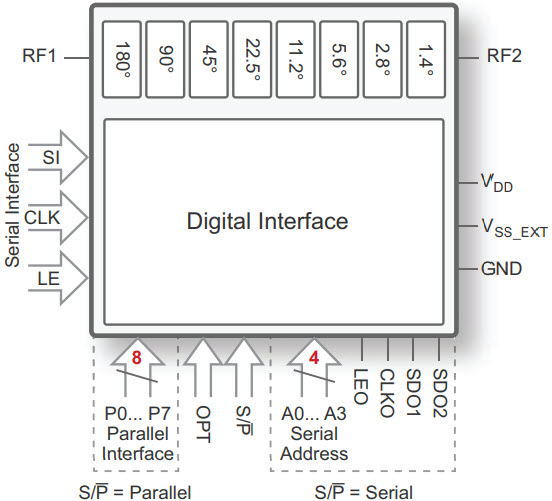

      8-bit full-range phase shifter of 358.6°, 180°, 90°, 45°, 22.5°, 11.2°, 5.6°, 2.8° and 1.4° bits
      Low RMS phase and amplitude error
      High linearity of +60 dBm IIP3
      Extended narrow band frequency operation of 1.1–3.0 GHz
      +105°C operating temperature
      Packaging: 32-lead 5 × 5 × 0.85 mm QFN
