SP4T Tuning Control Switch

PE613050

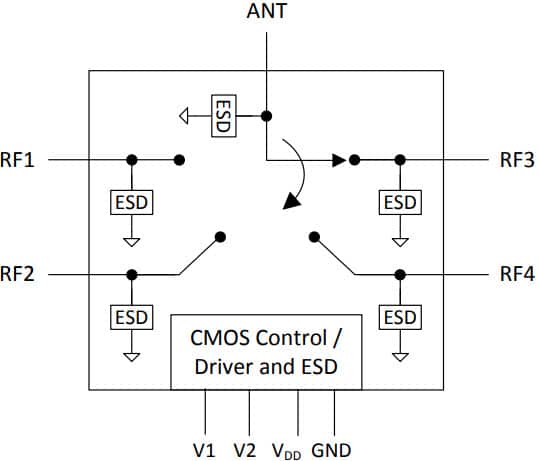

The PE613050 is an SP4T tuning control switch based on our UltraCMOS® technology. This highly versatile switch supports a wide variety of tuning circuit topologies with emphasis on impedance matching and aperture tuning applications. PE613050 features low on-resistance and insertion loss from 5 to 3000 MHz. With two-pin low voltage CMOS control, all decoding and biasing is integrated on-chip and no external bypassing or filtering components are required.

Industry-Leading Product

Specifications

DescriptionSP4T (OR)
Min Freq.5 MHz
Max Freq.3000 MHz
RON (Ω)1.60
COFF (pF)0.14
IMD3 (dBm)-120
Peak RF Voltage (Vpk)18
Package12L QFN
Package (mm)2x2

About Product

Key Features

      Open reflective architecture
      Very low on-resistance of 1.6Ω
      Low insertion loss
      High power handling
      Wide power supply range (2.3V to 5.5V)
      High ESD tolerance of 2 kV HBM on all pins
      Packaging: 12-lead 2 × 2 × 0.5 mm QFN
