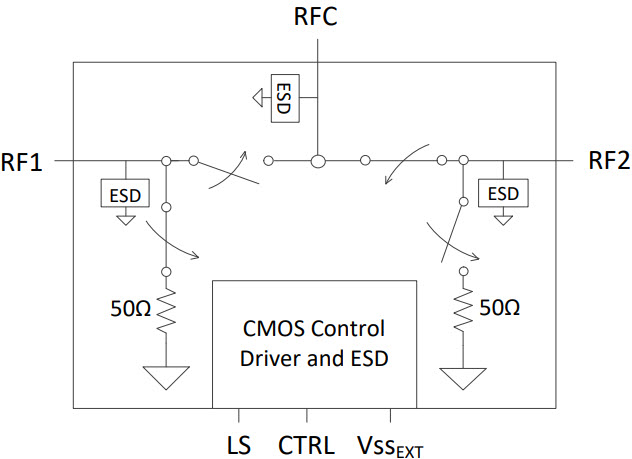

The PE42520 SPDT absorptive RF switch is designed for use in test/ATE and other high performance wireless applications. This broadband general purpose switch maintains excellent RF performance and linearity from 9 kHz through 13 GHz. This switch is a pin-compatible upgraded version of PE42552 with higher power handling of 36 dBm continuous wave (CW) and 38 dBm instantaneous power in 50Ω @ 8 GHz. The PE42520 exhibits high isolation, fast settling time, and is offered in a 3 × 3 mm QFN package.
The PE42520 SPDT absorptive RF switch is designed for use in test/ATE and other high performance wireless applications. This broadband general purpose switch maintains excellent RF performance and linearity from 9 kHz through 13 GHz. This switch is a pin-compatible upgraded version of PE42552 with higher power handling of 36 dBm continuous wave (CW) and 38 dBm instantaneous power in 50Ω @ 8 GHz. The PE42520 exhibits high isolation, fast settling time, and is offered in a 3 × 3 mm QFN package.
| Description | SPDT (A) |
| Min Freq. | 9 kHz |
| Max Freq. | 13 GHz |
| Max Typ. IL (dB) | 2.00 |
| Min Typ. IL (dB) | 0.60 |
| Max Typ. Iso (dB) | 90 |
| Min Typ. Iso (dB) | 18 |
| P1dB/P0.1dB (dBm) | 39.0 / – |
| IIP3 (dBm) | 66 |
| Max Power Rating (dBm) | 36 |
| Max Temp (ºC) | 85 |
| VDD Range (V) | 2.3–5.5 |
| Switching Time | 5.5 µs |
| ESD HBM (V) | 4000 |
| Package | 16L QFN |
| Package (mm) | 3x3 |
