UltraCMOS® SPDT RF Switch

PE42522

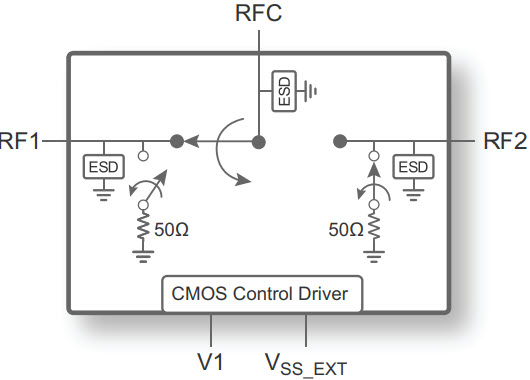

The PE42522 is a HaRP™ technology-enhanced absorptive SPDT RF switch that supports a broad frequency range from 9 kHz to 26.5 GHz. This broadband general purpose switch offers excellent isolation, high linearity performance and has exceptional settling time making this device ideal for many broadband wireless applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

Industry-Leading Product

Specifications

DescriptionSPDT (A)
Min Freq.9 kHz
Max Freq.26.5 GHz
Max Typ. IL (dB)5.30
Min Typ. IL (dB)0.70
Max Typ. Iso (dB)80
Min Typ. Iso (dB)20
P1/0.1dB (dBm)33.0/-
IIP3 (dBm)59
Package29L LGA
Package (mm)4x4

About Product

Key Features

      Broad frequency support from 9 kHz to 26.5 GHz
      High port to port isolation
      HaRP™ technology-enhanced
      Improved high frequency insertion loss and return loss performance with external matching
      High ESD performance of 3.5 kV HBM all pins
      Packaging: 29-lead 4 × 4 mm LGA
