UltraCMOS® SPDT RF Switch

The PE42553 is a HaRP™ technology-enhanced absorptive SPDT RF switch that supports a broad frequency range from 9 kHz to 8 GHz. This general purpose switch maintains excellent linearity, high RF performance and fast settling time making this device ideal for test and measurement, automated test equipment and other high performance wireless applications. The PE42553 is a pin-compatible version of the PE42552 with improved power handling capability of 36 dBm continuous wave (CW) and 38 dBm pulsed power in 50Ω at 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

PE42553 UltraCMOS® SPDT RF Switch

UltraCMOS® SPDT RF Switch

PE42553


The PE42553 is a HaRP™ technology-enhanced absorptive SPDT RF switch that supports a broad frequency range from 9 kHz to 8 GHz. This general purpose switch maintains excellent linearity, high RF performance and fast settling time making this device ideal for test and measurement, automated test equipment and other high performance wireless applications. The PE42553 is a pin-compatible version of the PE42552 with improved power handling capability of 36 dBm continuous wave (CW) and 38 dBm pulsed power in 50Ω at 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

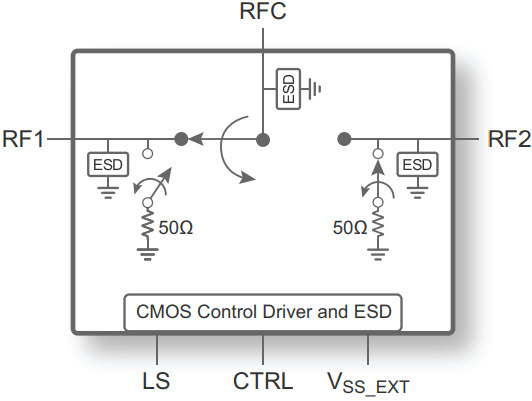

Industry-Leading Product

Specifications

DescriptionSPDT (A)
Min Freq.9 kHz
Max Freq.8 GHz
Max Typ. IL (dB)0.85
Min Typ. IL (dB)0.60
Max Typ. Iso (dB)90
Min Typ. Iso (dB)36
P1dB/P0.1dB (dBm)39.0 / –
IIP3 (dBm)66
Max Power Rating (dBm)36
Max Temp (ºC)85
VDD Range (V)2.3–5.5
Switching Time5.5 µs
ESD HBM (V)4000
Package16L QFN
Package (mm)3x3

About Product

Key Features

      Excellent power handling: 36 dBm CW and 38 dBm pulsed power in 50Ω @ 8 GHz
      High linearity: IIP3 of 66 dBm
      High isolation
      HaRP™ technology-enhanced
      High ESD performance
      Packaging: 16-lead 3 × 3 mm QFN
