UltraCMOS® SPDT RF Switch

PE42427

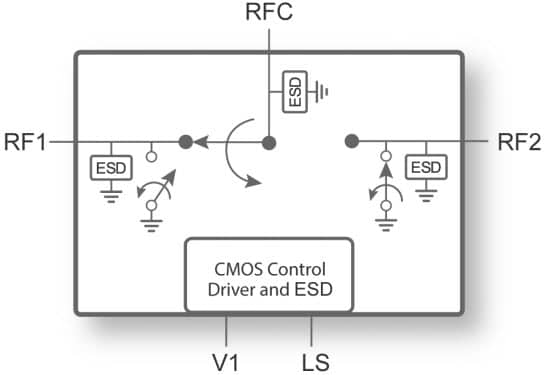

The PE42427 is a HaRP™-enhanced SPDT RF switch designed to cover a broad range of applications from 5 MHz to 6 GHz, including low spurious cable CPE applications. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and requires no external components.

Industry-Leading Product

Specifications

DescriptionSPDT (R)
Min Freq.5 MHz
Max Freq.6 GHz
Max Typ. IL (dB)0.90
Min Typ. IL (dB)0.23
Max Typ. Iso (dB)68
Min Typ. Iso (dB)17
P1/0.1dB (dBm)34.0/-
IIP3 (dBm)75
Package12L QFN
Package (mm)2x2

About Product

Key Features

      Symmetric SPDT reflective switch
      Low insertion loss
      Low spurious performance of -163 dBm/Hz
      Wide supply range of 2.3-5.5V
      Excellent linearity
      High ESD tolerance
      Logic Select (LS) pin provides maximum flexibility of control logic
      Packaging: 12-lead 2 × 2 mm QFN
