UltraCMOS® SP3T RF Switch

PE42430

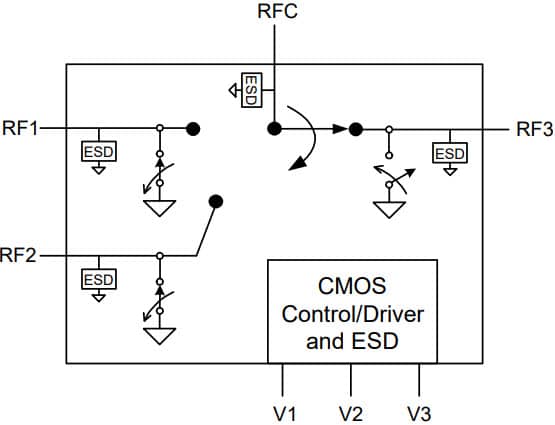

The PE42430 is a HaRP™-enhanced reflective SP3T RF switch developed on the UltraCMOS® process technology. This tiny general purpose switch is ideal for WLAN and bluetooth applications in the 2.4–2.5 GHz bands as well as general broadband switching applications. It is comprised of three RF ports and has low insertion loss and high isolation. An on-chip CMOS decode logic facilitates a three-pin CMOS control interface. Unlike competitive solutions, there is no need for blocking capacitors when using the PE42430.

Industry-Leading Product

Specifications

DescriptionSP3T (R)
Min Freq.100 MHz
Max Freq.3000 MHz
Max Typ. IL (dB)0.55
Min Typ. IL (dB)0.45
Max Typ. Iso (dB)40
Min Typ. Iso (dB)30
P1/0.1dB (dBm)30.0/-
IIP3 (dBm)66
Package8L DFN
Package (mm)1.5x1.5

About Product

Key Features

      HaRP™-enhanced UltraCMOS® device
      Low insertion loss
      IIP3: Typical +66 dBm
      P0.1dB compression: Typical +30 dBm
      Excellent ESD tolerance of 4500V HBM and 250V MM on all ports
      No external VDD required. VDD is derived from switch control inputs
      Packaging: 8-lead 1.5 × 1.5 mm DFN
