UltraCMOS® SP4T RF Switch

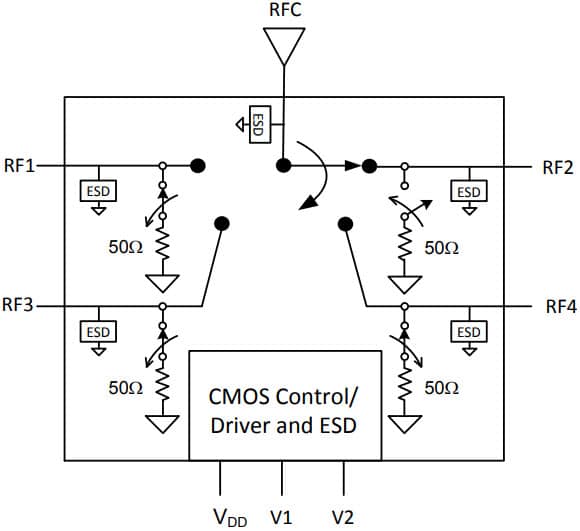

The PE42441 is a HaRP™ technology-enhanced absorptive SP4T RF switch designed for use in various switching applications spanning multiple markets including wireless infrastructure, broadband, and test and measurement. This switch has four symmetric RF ports and delivers low insertion loss and exceptional isolation. An on-chip CMOS decode logic facilitates a two-pin low voltage CMOS control interface. In addition, no external blocking capacitors are required if 0 VDC is present on RF ports.

The PE42441 is a HaRP™ technology-enhanced absorptive SP4T RF switch designed for use in various switching applications

UltraCMOS® SP4T RF Switch

PE42441


The PE42441 is a HaRP™ technology-enhanced absorptive SP4T RF switch designed for use in various switching applications spanning multiple markets including wireless infrastructure, broadband, and test and measurement. This switch has four symmetric RF ports and delivers low insertion loss and exceptional isolation. An on-chip CMOS decode logic facilitates a two-pin low voltage CMOS control interface. In addition, no external blocking capacitors are required if 0 VDC is present on RF ports.

Industry-Leading Product

Specifications

DescriptionSP4T (A)
Min Freq.10 MHz
Max Freq.8 GHz
Max Typ. IL (dB)1.20
Min Typ. IL (dB)0.80
Max Typ. Iso (dB)45
Min Typ. Iso (dB)31
P1/0.1dB (dBm)31.0/-
IIP3 (dBm)58
Package32L LGA
Package (mm)5x5

About Product

Key Features

      Four symmetric 50Ω absorptive ports
      High isolation
      Low insertion loss
      High linearity
      1.8 V control logic compatible
      ESD performance
      Packaging: 32-lead 5 × 5 mm LGA
