UltraCMOS® SPDT CATV Switch

The PE4256 is an UltraCMOS® switch designed for CATV applications, covering a broad frequency range from 5 MHz up to 3 GHz. This single-supply SPDT switch integrates a two-pin CMOS control interface. It also provides low insertion loss with extremely low bias requirements while operating on a single 3V supply. In a typical CATV application, the PE4256 provides for a cost effective and manufacturable solution when compared to mechanical relays.

Leave a Reply

Your email address will not be published.

You may use these <abbr title="HyperText Markup Language">HTML</abbr> tags and attributes: <a href="" title=""> <abbr title=""> <acronym title=""> <b> <blockquote cite=""> <cite> <code> <del datetime=""> <em> <i> <q cite=""> <s> <strike> <strong>

UltraCMOS® SPDT CATV Switch

PE4256


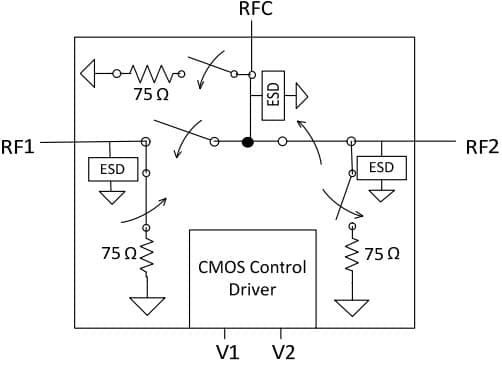

The PE4256 is an UltraCMOS® switch designed for CATV applications, covering a broad frequency range from 5 MHz up to 3 GHz. This single-supply SPDT switch integrates a two-pin CMOS control interface. It also provides low insertion loss with extremely low bias requirements while operating on a single 3V supply. In a typical CATV application, the PE4256 provides for a cost effective and manufacturable solution when compared to mechanical relays.

Industry-Leading Product

Specifications

DescriptionSPDT (A)
Min Freq.5 MHz
Max Freq.3000 MHz
Max Typ. IL (dB)1.10
Min Typ. IL (dB)0.50
Max Typ. Iso (dB)80
Min Typ. Iso (dB)52
P1/0.1dB (dBm)31.0/-
IIP3 (dBm)55
Package2OL QFN
Package (mm)4x4

About Product

Key Features

      75Ω characteristic impedance
      Integrated 75Ω terminations
      CTB performance of –90 dBc
      High isolation 65 dB at 1000 MHz
      Low insertion loss: typically 0.5 dB at 5 MHz, 0.9 dB at 1000 MHz
      High input IP3: >50 dBm
      CMOS two-pin control
      Single +3 volt supply operation
      Low current consumption: 8 μA
      Unique all off terminated mode
      Packaging: 4 × 4 mm QFN
