PE42722

PE42722

UltraCMOS® SPDT RF Switch

The PE42722 is a HaRP™ technology-enhanced reflective SPDT RF switch designed for use in cable applications including DOCSIS 3.0/1 cable modem and set-top box. It delivers high linearity and excellent harmonics performance in the 5-1794 MHz band. It also features low insertion loss and high isolation performance that makes the PE42722 ideal for DOCSIS 3.1 applications.

Technical Resources Buy Product

PE42722 Specs

Specifications

Function

Type

Description

Min Freq (MHz)

Max Freq (MHz)

Min IL (dB)

Max IL (dB)

Min Iso (dB)

Max Iso (dB)

P1/0.1dB (dBm)

IIP3 (dBm)

Package

Package (mm)

SPDT (R)

50Ω or 75Ω

High Linearity

5

1794

0.2

0.85

29.0

50.0

41.0

84

32L QFN

5x5

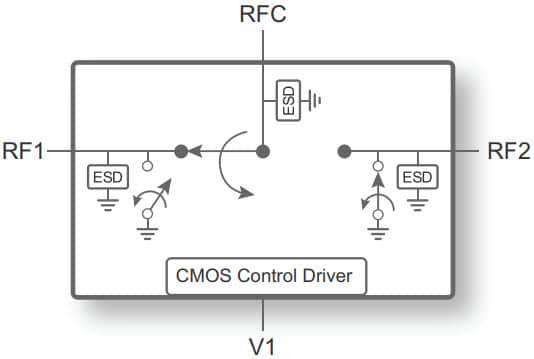

Schematics

Pe42722 diagram

Technical Resources

Datasheet File pdf

Material Declaration

Schematic/B.O.M.

Application Note: Thermal Characterization

Application Note: Soldering Guidelines for Mounting Bottom-terminated Components

Application Note: Using a 50Ω Switch Within a 75Ω System

Videos

Introducing the PE42722 UltraCMOS® RF Switch, enabling DOCSIS 3.1 dual-band architectures

October 2014 | 4:19
