UltraCMOS® RF Digital Step Attenuator

PE43712


The PE43712 is a 50Ω, HaRP™ technology-enhanced, 7-bit RF digital step attenuator (DSA) that supports a broad frequency range from 9 kHz to 6 GHz. It features glitch-less attenuation state transitions and supports 1.8V control voltage and an extended operating temperature range to +105°C, making this device ideal for many broadband wireless applications.

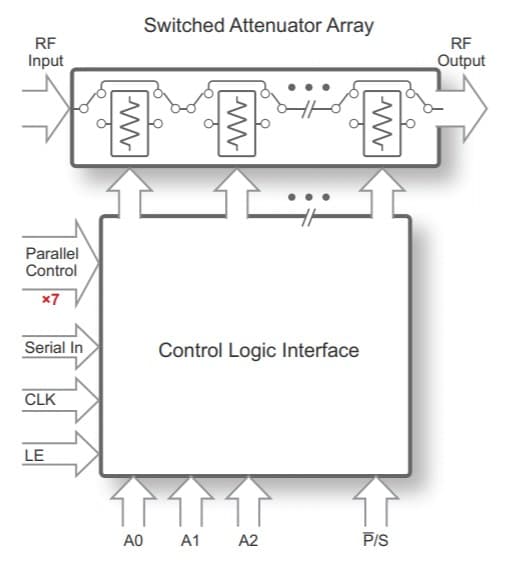

The PE43712 is a pin-compatible upgraded version of the PE43601 and PE43701. An integrated digital control interface supports both serial addressable and parallel programming of the attenuation, including the capability to program an initial attenuation state at power-up.

The PE43712 cover a 31.75 dB attenuation range in 0.25 dB, 0.5 dB and 1 dB steps. It is capable of maintaining 0.25 dB monotonicity through 4 GHz, 0.5 dB monotonicity through 5 GHz and 1 dB monotonicity through 6 GHz. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

Industry-Leading Product

Specifications

Description7-bit; 128 states
Min Freq.9 kHz
Max Freq.6 GHz
Max Typ. IL (dB)2.45
Min Typ. IL (dB)1.30
IIP3 (dBm)57
Attn Range (dB)31.75
Attn Step (dB)0.25/0.5/1.0
InterfaceParallel (Latched, Direct)
Bits7
Package32L QFN
Package (mm)5x5

About Product

Key Features

      Flexible attenuation steps of 0.25 dB, 0.5 dB and 1 dB up to 31.75 dB
      Glitch-less attenuation state transitions
      Monotonicity: 0.25 dB up to 4 GHz, 0.5 dB up to 5 GHz and 1 dB up to 6 GHz
      Extended +105°C operating temperature
      Parallel and serial programming interfaces with serial addressability
      Packaging—32-lead 5 × 5 mm QFN
