UltraCMOS® RF Digital Step Attenuator

The PE43713 is a 50Ω, HaRP™ technology-enhanced, 7-bit RF digital step attenuator (DSA) that supports a broad frequency range from 9 kHz to 6 GHz. It features glitch-less attenuation state transitions, supports 1.8V control voltage and includes an extended operating temperature range to +105°C and optional VSS_EXT bypass mode to improve spurious performance, making this device ideal for test and measurement (T&M).

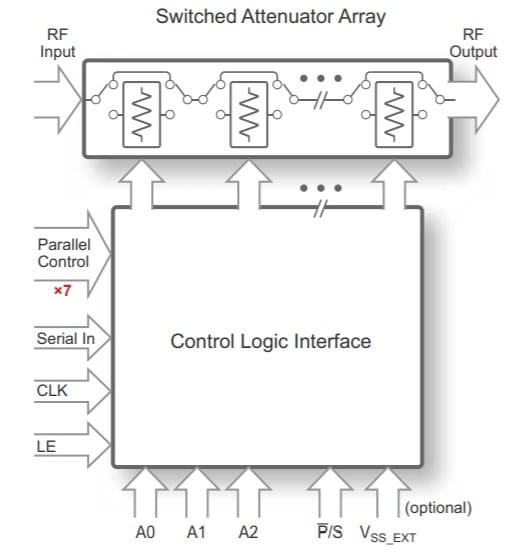

The PE43713 is a pin-compatible upgraded version of the PE43703. An integrated digital control interface supports both serial addressable and parallel programming of the attenuation, including the capability to program an initial attenuation state at power-up.

The PE43713 covers a 31.75 dB attenuation range in 0.25 dB, 0.5 dB and 1 dB steps. It is capable of maintaining 0.25 dB monotonicity through 4 GHz, 0.50 monotonicity through 5 GHz and 1 dB monotonicity through 6 GHz. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

PE43713 UltraCMOS® RF Digital Step Attenuator

UltraCMOS® RF Digital Step Attenuator

PE43713


The PE43713 is a 50Ω, HaRP™ technology-enhanced, 7-bit RF digital step attenuator (DSA) that supports a broad frequency range from 9 kHz to 6 GHz. It features glitch-less attenuation state transitions, supports 1.8V control voltage and includes an extended operating temperature range to +105°C and optional VSS_EXT bypass mode to improve spurious performance, making this device ideal for test and measurement (T&M).

The PE43713 is a pin-compatible upgraded version of the PE43703. An integrated digital control interface supports both serial addressable and parallel programming of the attenuation, including the capability to program an initial attenuation state at power-up.

The PE43713 covers a 31.75 dB attenuation range in 0.25 dB, 0.5 dB and 1 dB steps. It is capable of maintaining 0.25 dB monotonicity through 4 GHz, 0.50 monotonicity through 5 GHz and 1 dB monotonicity through 6 GHz. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

Industry-Leading Product

Specifications

Description7-bit; 128 states
Min Freq.9 kHz
Max Freq.6 GHz
Max Typ. IL (dB)2.45
Min Typ. IL (dB)1.30
IIP3 (dBm)57
Attn Range (dB)0.00–31.75
Attn Step (dB)0.25/0.5/1.0
InterfaceParallel (Latched, Direct)
Bits7
Attenuation Accuracy (dB @ 1 GHz)±(0.20 + 1.5% of setting)
Switching Time275 µs
ESD HBM (V)3000
Package32L QFN
Package (mm)5x5

About Product

Key Features

      Flexible attenuation steps of 0.25 dB, 0.5 dB and 1 dB up to 31.75 dB
      Glitch-less attenuation state transitions
      Monotonicity: 0.25 dB up to 4 GHz, 0.5 dB up to 5 GHz and 1 dB up to 6 GHz
      Extended +105°C operating temperature
      Parallel and serial programming interfaces with serial addressability
      Packaging—32-lead 5 × 5 mm QFN
