UltraCMOS® SP8T RF Switch

UltraCMOS® SP8T RF Switch

PE426482

ico-download-2PDF

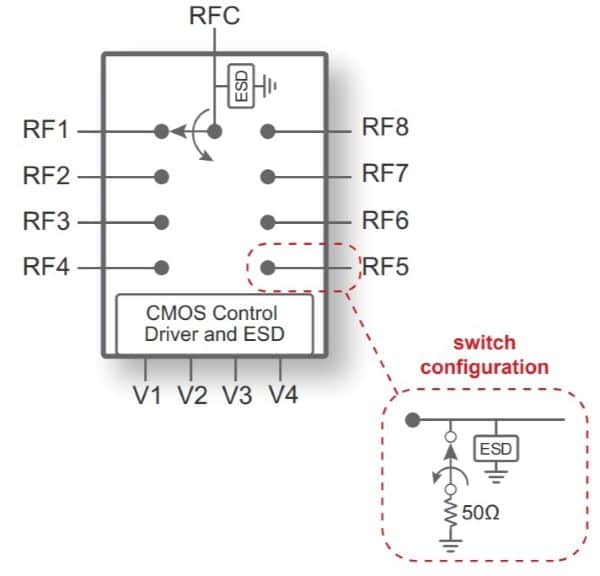

The PE426482 is a HaRP™ technology-enhanced absorptive SP8T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers low insertion loss, fast RF TRISE/TFALL time and high isolation in the operating temperature range from –55°C to +125°C. It is ideal for harsh industrial applications that required extended support in this temperature range. No blocking capacitors are required if DC voltage is not present on the RF ports.

Contact Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

DescriptionSP8T (A)
Min Freq.10 MHz
Max Freq.8 GHz
Max Typ. IL (dB)1.6
Min Typ. IL (dB)0.7
Max Typ. Iso (dB)85
Min Typ. Iso (dB)30
P1dB/P0.1dB (dBm)40.0 / 37.5
IIP3 (dBm)60
Peak RF Voltage (Vpk)31
Max Temp (ºC)125
VDD Range (V)2.3–5.5
Switching Time0.227 µs
ESD HBM (V)1000
Package (mm)4x4
Package24L QFN
About Product

Key Features

      High isolation: 41 dB @ 6 GHz
      Low insertion loss: 1.1 dB @ 6 GHz
      RF TRISE/TFALL time of 100 ns
      Power handling of 31 dBm CW
      Logic select (LS) pin provides maximum control logic flexibility
      Terminated all-off state mode
      –55°C to +125°C operating temperature support
      Packaging: 24-lead 4 × 4 mm QFN
