UltraCMOS® SP4T RF Switch

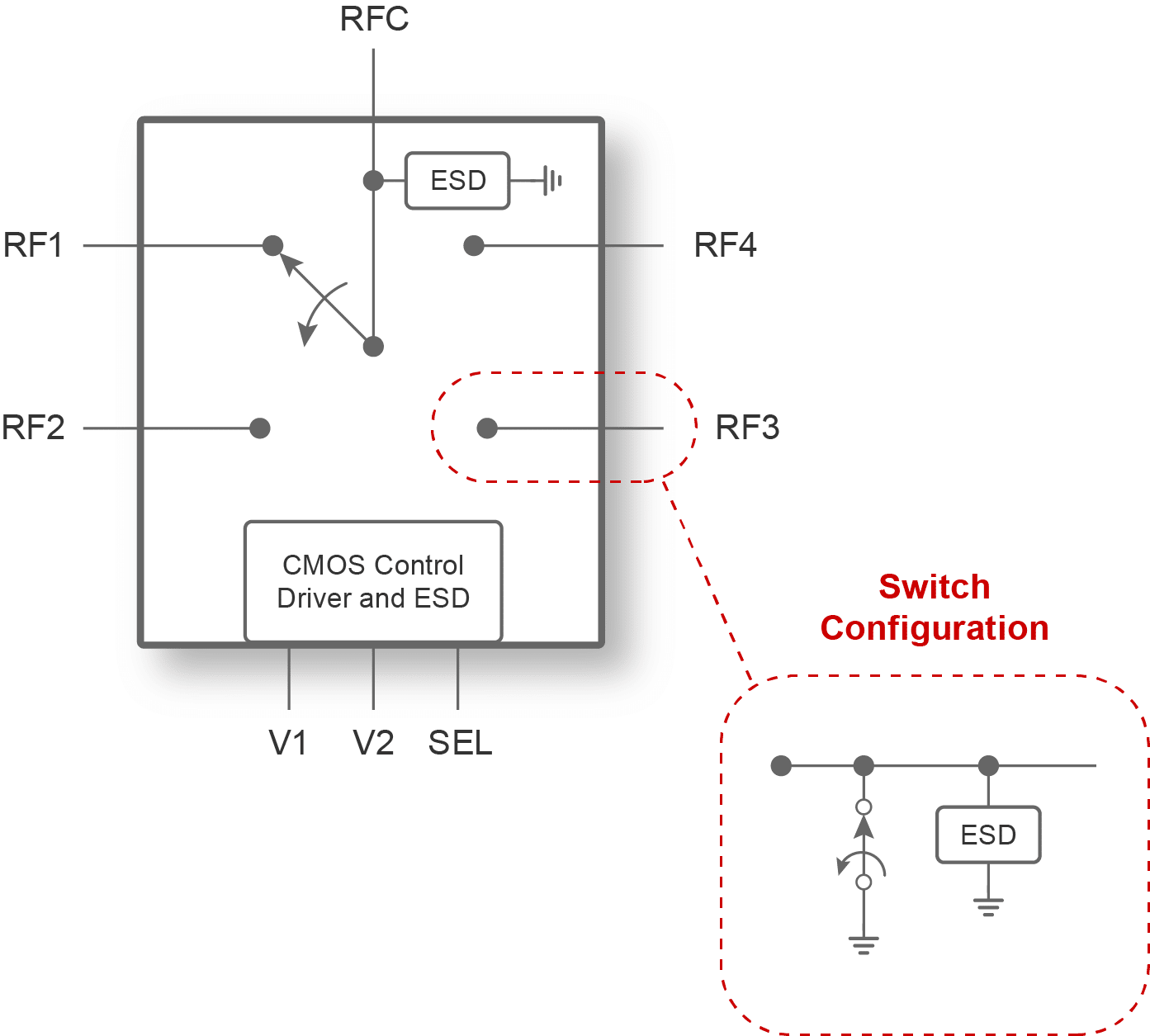

The PE42444 is a HaRP™ technology-enhanced SP4T RF switch that supports a frequency range from 1.8 GHz to 5 GHz. It delivers extremely low insertion loss, high linearity and fast switching time with high input power handling capability making this device ideal for hybrid beamforming and for 5G massive MIMO applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

UltraCMOS® SP4T RF Switch PE42444

UltraCMOS® SP4T RF Switch

PE42444


The PE42444 is a HaRP™ technology-enhanced SP4T RF switch that supports a frequency range from 1.8 GHz to 5 GHz. It delivers extremely low insertion loss, high linearity and fast switching time with high input power handling capability making this device ideal for hybrid beamforming and for 5G massive MIMO applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

Industry-Leading Product

Specifications

DescriptionSP4T (R)
Min Freq.1800 MHz
Max Freq.5 GHz
Max Typ. IL (dB)0.68
Min Typ. IL (dB)0.32
Max Typ. Iso (dB)38
Min Typ. Iso (dB)25
P1dB/P0.1dB (dBm)50
IIP3 (dBm)85
Max Power Rating (dBm)50
Max Temp (ºC)125
VDD Range (V)4.5–5.5
Switching Time0.86 µs
ESD HBM (V)1000
Package20L LGA
Package (mm)4×4

About Product

Key Features

      Low insertion loss
      High linearity
      High power handling
      105°C operating temperature
      Packaging — 20-lead 4 x 4 mm LGA
