Isolated DC-DC Switching Regulator

NOT RECOMMENDED FOR NEW DESIGNS (NRND)
This product is not recommended for new designs. For more information, please contact your local sales representative.

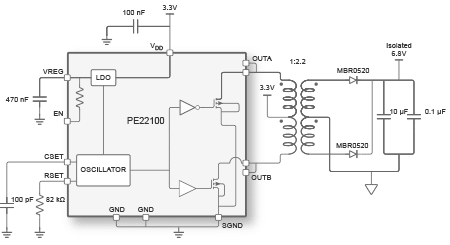

The PE22100 is a push pull driver for driving small transformers for isolated power supply applications. The PE22100 drives the primary of a center-tapped transformer such as the 782100 family from Murata from a 3V or a 5V supply to deliver an isolated power supply. The device consists of an on-chip oscillator whose frequency is set by an external capacitor. The oscillator output is divided by two in frequency to create anti-phase clock signals that drive two power switches. The device also contains an internal current limit and thermal cutout. The PE22100 is available in a 2 × 2 × 0.5 mm QFN package and is specified for operation from –40°C to +125°C.

Isolated DC-DC Switching Regulator

Isolated DC-DC Switching Regulator

PE22100


NOT RECOMMENDED FOR NEW DESIGNS (NRND)
This product is not recommended for new designs. For more information, please contact your local sales representative.

The PE22100 is a push pull driver for driving small transformers for isolated power supply applications. The PE22100 drives the primary of a center-tapped transformer such as the 782100 family from Murata from a 3V or a 5V supply to deliver an isolated power supply. The device consists of an on-chip oscillator whose frequency is set by an external capacitor. The oscillator output is divided by two in frequency to create anti-phase clock signals that drive two power switches. The device also contains an internal current limit and thermal cutout. The PE22100 is available in a 2 × 2 × 0.5 mm QFN package and is specified for operation from –40°C to +125°C.

Industry-Leading Product

Specifications

DescriptionIsolated Transformer Driver
Max Vin (V)5.5
Package12L QFN
Package (mm)2x2

About Product

Key Features

      Push pull driver for small transformers
      Operates off a 3.0V or 5V supply
      Adjustable switching frequency up to 2 MHz
      Current limit protection
      Over-temperature protection
      Packaging: 2 × 2 × 0.5 mm QFN
