8-channel Beamforming Front End

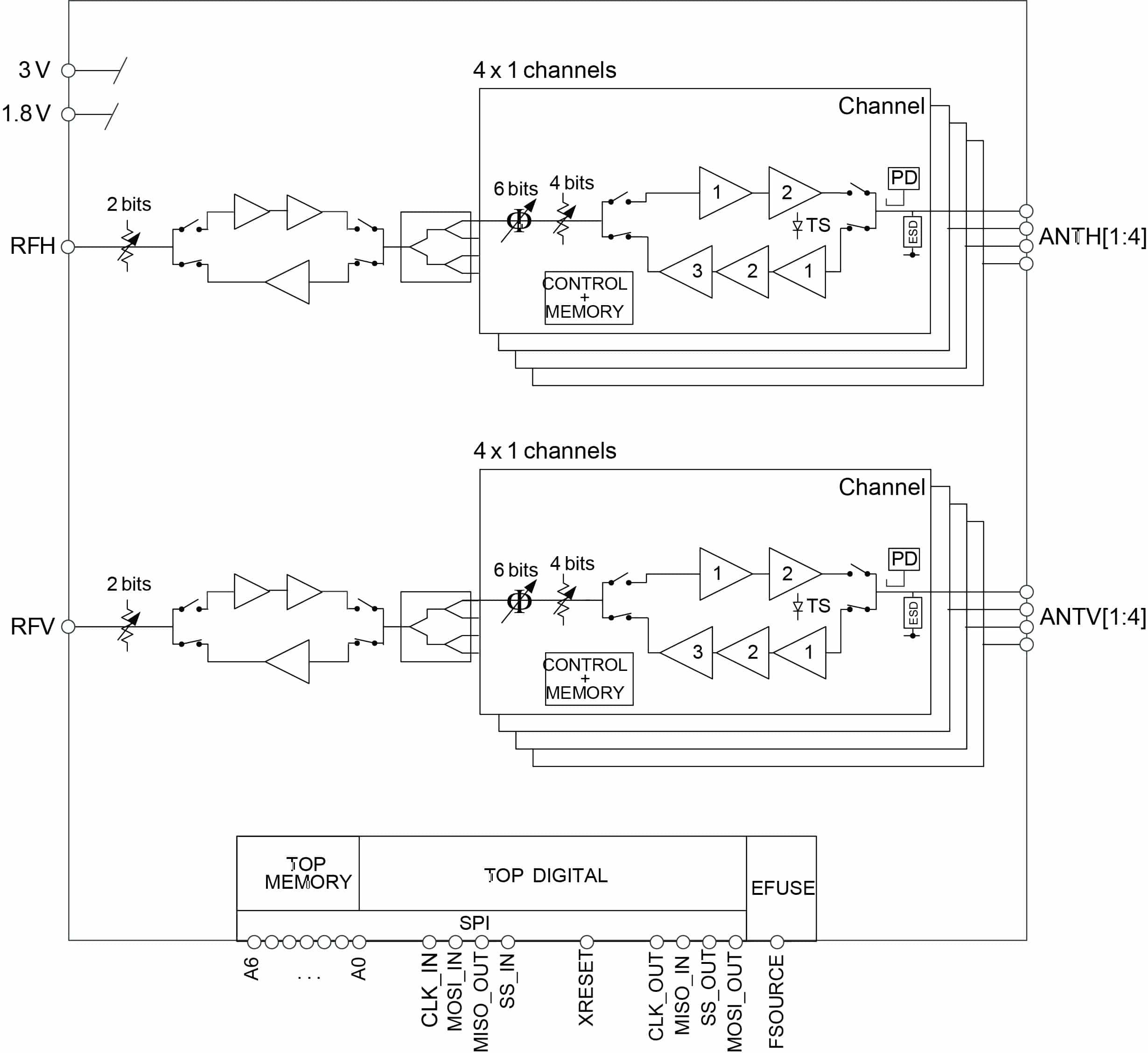

The PE188100 is an 8-channel beamforming front end for 5G applications. It is organized as two independently controllable RF chains of four channels supporting four dual-polarity antennas or eight single-polarity antennas. Time division duplex (TDD) mode operation switches power amplifier/low noise amplifier (PA/LNA) branches connected to each antenna port. Integrated splitter/combiners and a phase and amplitude beamformer for each channel complete each chain.

PE188100 8-channel Beamforming Front End

8-channel Beamforming Front End

PE188100


The PE188100 is an 8-channel beamforming front end for 5G applications. It is organized as two independently controllable RF chains of four channels supporting four dual-polarity antennas or eight single-polarity antennas. Time division duplex (TDD) mode operation switches power amplifier/low noise amplifier (PA/LNA) branches connected to each antenna port. Integrated splitter/combiners and a phase and amplitude beamformer for each channel complete each chain.

Industry-Leading Product

Specifications

Description8-channel Beamforming Front End
Min Freq.24.25 GHz
Max Freq.27.5 GHz

About Product

Key Features

      Covers the n258 band
      Integrates power amplifiers and low-noise amplifiers
      Supports four dual-polarity antennas
      50Ω impedance at RF ports
      6-bit phase and 6-bit attenuation control
      High linear POUT supporting CP-OFDM 64 QAM
      Fast beam switching
      On-chip memory for 512 beams
      Independent control via SPI of all paths
