Low Insertion Loss RF Switches

Key Features

  • Industry-leading insertion loss and RF performance
  • HaRP™ technology enhancement reduces gate lag and insertion loss drift
  • Monolithic CMOS solution that integrates RF, analog and digital
  • Best-in-class ESD and reliability

RF Product Catalog

View the pSemi 2023–2024 Product Catalog to see our complete RF product portfolio.

Download Here
Product Store Datasheet Description Freq. Typ. IL (dB) Typ. Iso (dB) P1dB/P0.1dB (dBm) IIP3 (dBm) Max Power Rating (dBm) Package Package (mm) VDD Range (V) Switching Time ESD HBM (V)
Min Max Min Max Min Max
PE4239 SPDT (R) DC 3000 MHz 0.70 0.90 23 32 27.0 / – 45 30 6L SC-70 1×2 2.7–3.3 0.3 µs 1500

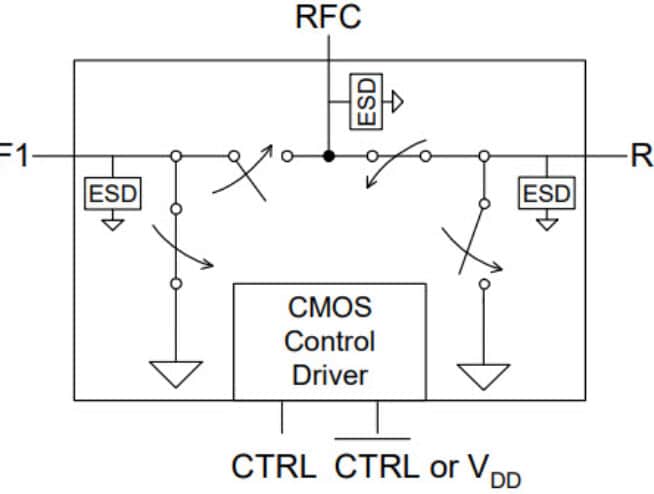

PE42421 SPDT (R) 10 MHz 3000 MHz 0.35 0.50 20 30 30.5 / – 55 34 6L SC-70 1x2 1.8–3.3 1.5 µs 2000

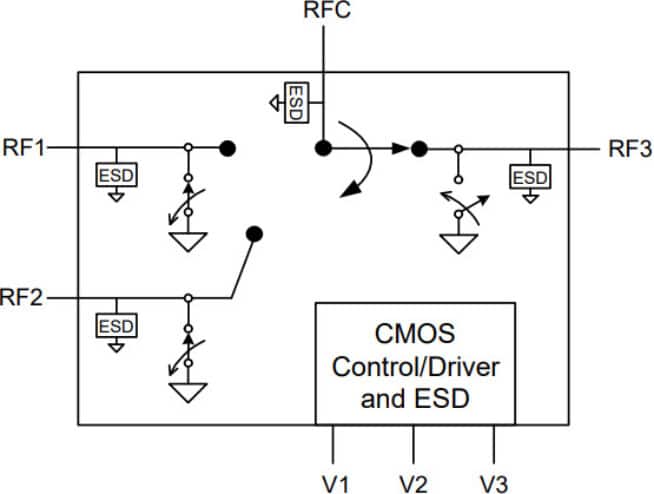

PE42430 SP3T (R) 100 MHz 3000 MHz 0.45 0.55 30 40 30.0 / – 66 27 8L DFN 1.5x1.5 3.0–5.5 0.5 µs 4500

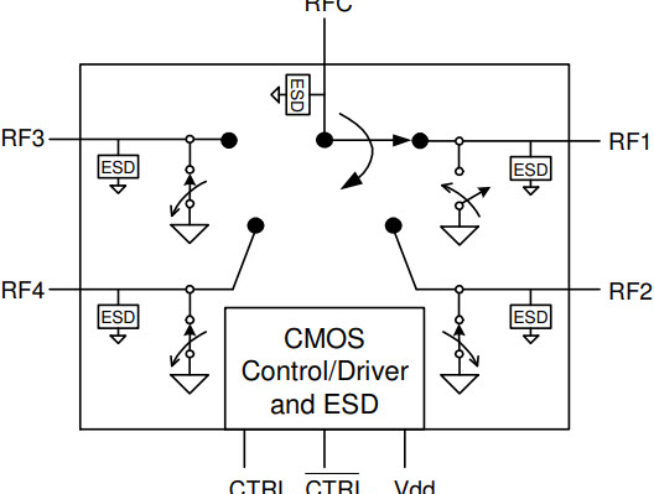

PE42440 SP4T (R) 50 MHz 3000 MHz 0.45 0.85 22 34 41.5 / – 67 33 16L QFN 3x3 2.7–3.3 2 µs 2000

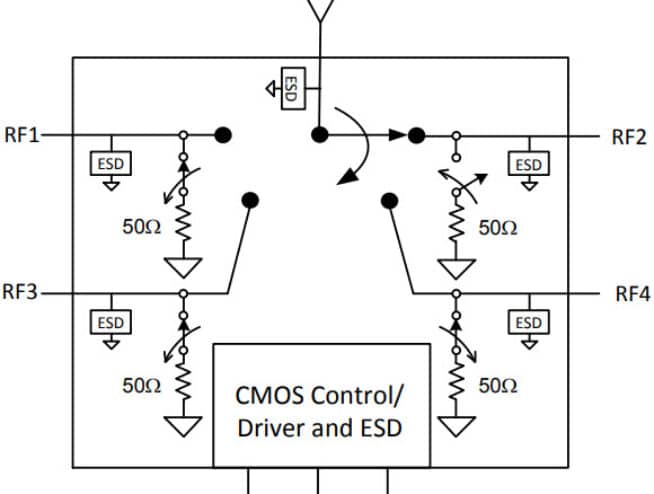

PE42441 SP4T (A) 10 MHz 8 GHz 0.80 1.20 31 45 31.0 / – 58 30 32L LGA 5x5 3.0–3.55 5 µs 2000
PE4245 SPDT (R) DC 4000 MHz 0.60 0.70 32 42 27.0 / – 45 30 6L DFN 3x3 2.7–3.3 0.2 µs 1500

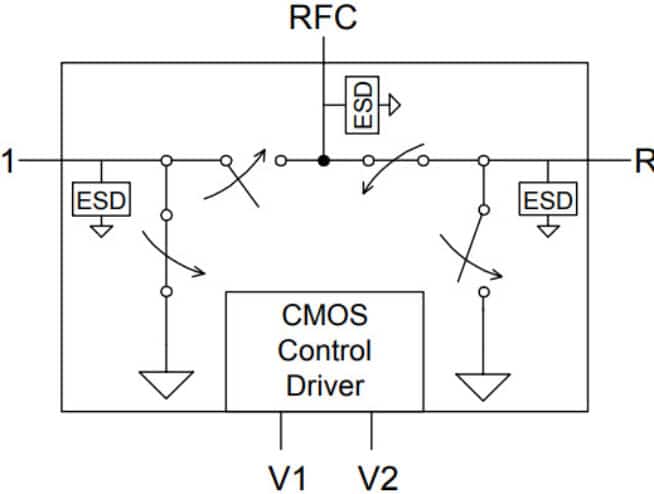

PE4250 SPDT (R) 10 MHz 3000 MHz 0.60 0.75 40 51 30.5 / – 59 27 8L MSOP 3x3 3.0–3.6 0.15 µs 4000

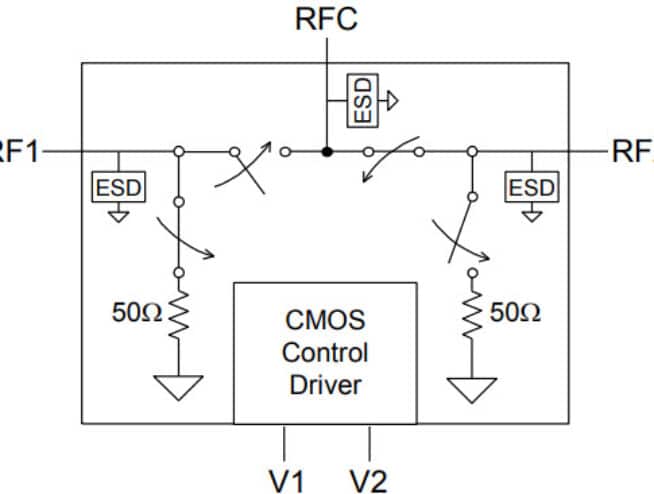

PE4251 SPDT (A) 10 MHz 4000 MHz 0.55 1.00 37 62 30.5 / – 59 27 8L MSOP 3x3 3.0–3.6 0.15 µs 4000

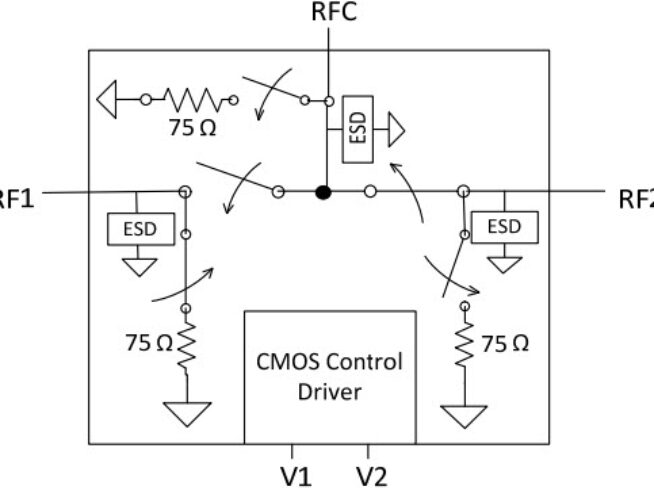

PE4256 SPDT (A) 5 MHz 3000 MHz 0.50 1.10 52 80 31.0 / – 55 24 2OL QFN 4x4 2.7–3.3 2 µs 1000

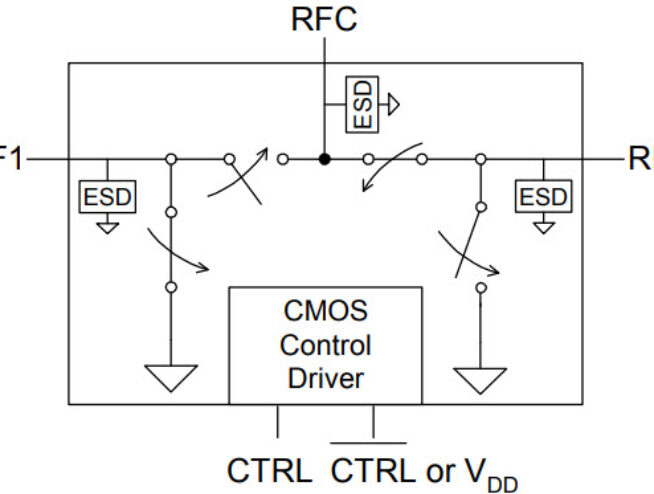

PE4259 SPDT (R) 10 MHz 3000 MHz 0.35 0.50 20 30 30.5 / – 55 34 6L SC-70 1x2 1.8–3.3 1.5 µs 2000

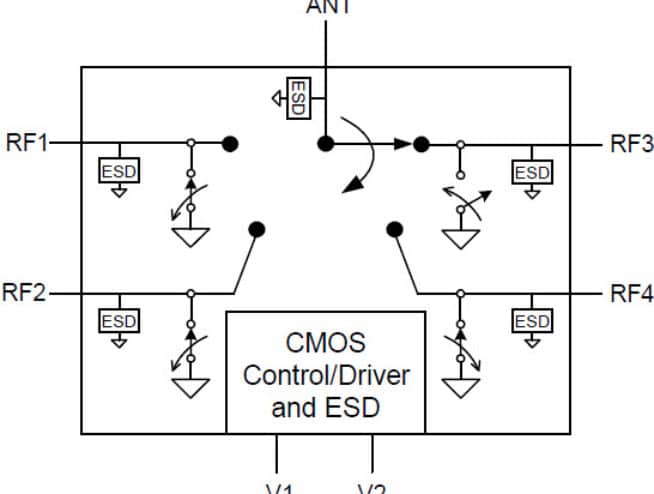

PE42641 SP4T (R) 100 MHz 3000 MHz 0.45 0.55 27.5 35 ₋ 68 35 16L QFN 3x3 2.65–2.85 2 µs 2000
